Durston TUI 130 Double


Price:
Sale price¥1,140,600
 More payment options

Description

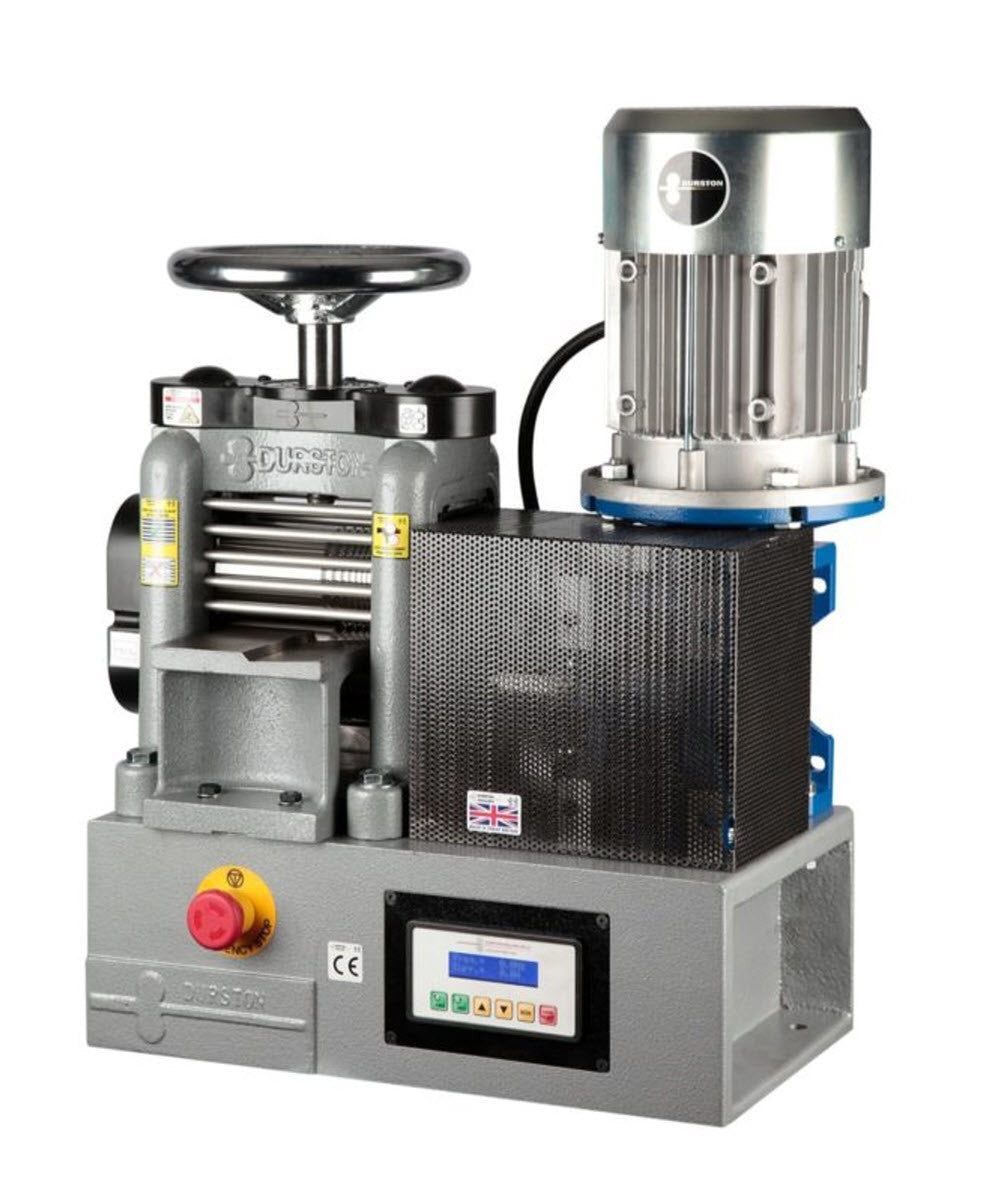

The Durston TUI 130 Double-Sided Power Mill is a highly durable and versatile rolling mill constructed from cast iron for optimal strength and rigidity. It belongs to Durston’s TUI powered rolling mill range, which delivers the same high quality and output as their premium DRM series but at a more affordable cost. This is achieved by using the same core components such as mills, rolls, and casting gears, while replacing the cast iron plate and main guard with steel and consolidating safety features to one central emergency stop button.

This model features variable speeds from 5 to 20 RPM in both forward and reverse, powered by a robust 1.1KW motor designed for continuous operation. It offers two dedicated rolling sides: a flat rolling side with a width of 130mm capable of rolling sheet metal up to 6mm thick, and a square groove wire rolling side with 19 grooves ranging from 10mm to 1mm for precise wire shaping. The mill includes four sets of side extension rollers providing half-round profiles in 8, 6, 4, 3, 2, and 1.5mm sizes for additional flexibility.

Safety is prioritized with a central emergency stop button, safety bars in front and rear, and guards covering extension rollers and top gears. This model combines professional-grade performance with cost-effective engineering, making it ideal for jewelry workshops seeking reliable, precise, and efficient rolling equipment.



PRODUCT LENGTH (MM)

840

PRODUCT WIDTH (MM)

540

PRODUCT HEIGHT (MM)

540

NUMBER OF GROOVES

19

MAX. SHEET THICKNESS (MM)

6

ROLLER TYPE

Combination

ROLLER DIAMETER (MM)

65

ROLLER LENGTH (MM)

130

SIDE EXTENSIONS

1.5, 2, 3, 4, 6 and 8mm

MAX. WIRE CAPACITY (MM)

10mm

VOLTAGE

110V, 220V

RANGE

TUI
