Description

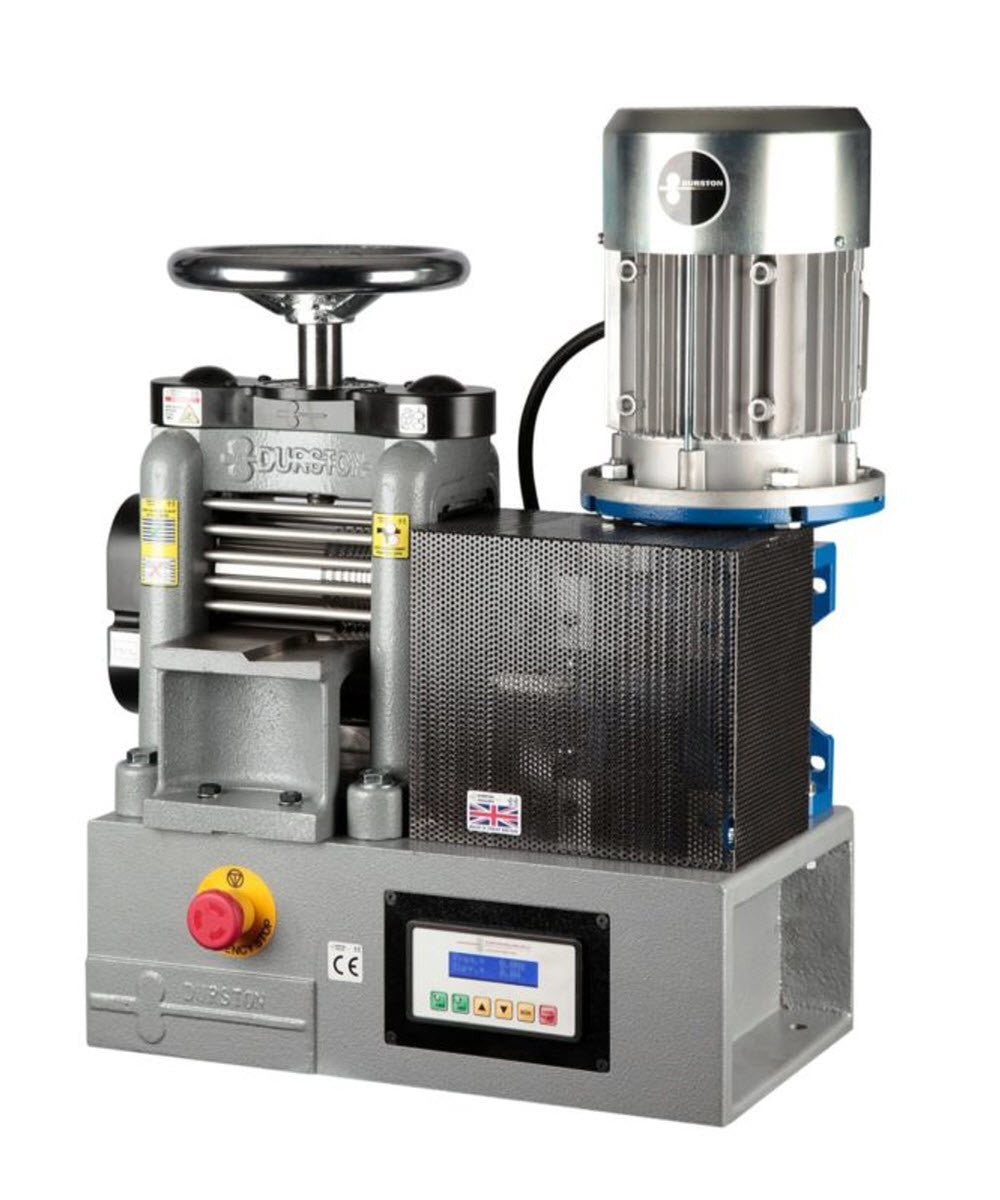

The Durston DRM SS 130 Single-Sided Powered Rolling Mill is a space-saving and compact version of the renowned DRM 130 power mill, designed for environments where bench space is limited. It maintains the same robust cast iron construction for exceptional strength and rigidity. Equipped with a powerful 1.1KW motor, it provides reliable, continuous operation at variable speeds with forward and reverse functionality, delivering smooth and near-silent rolling.

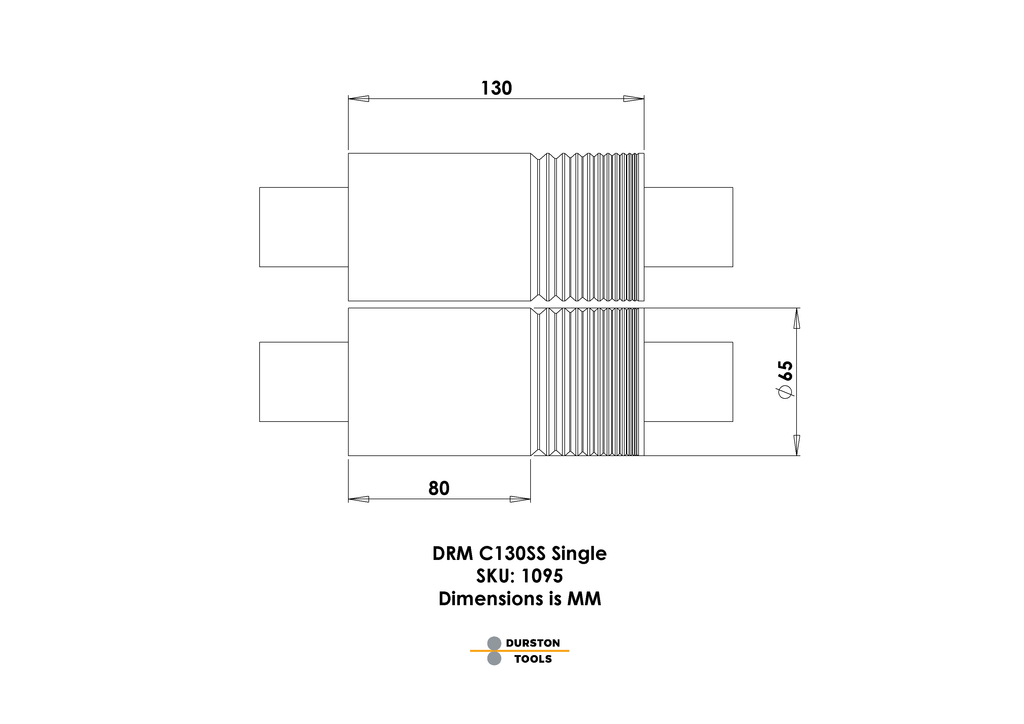

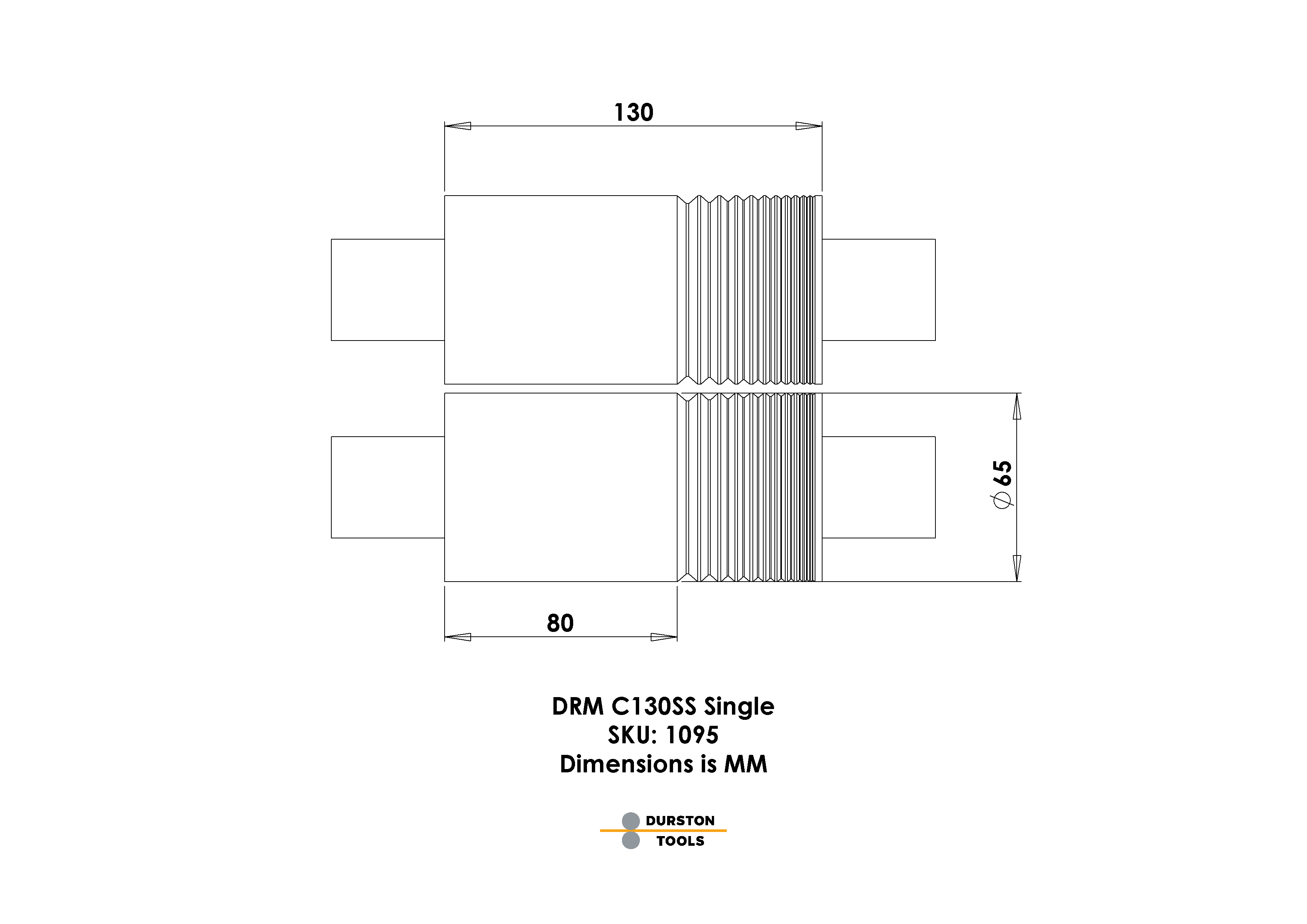

The rolls are induction hardened to 64 RC, with the main barrel hardened to a depth of 6mm, ensuring long-lasting durability. This model features a 130mm roller length with one side extension set offering four half-round rollers for versatile wire shaping. Safety is prioritized through an emergency stop button, safety bars at the front and rear, and protective guards over extension rollers and top gears. The DRM SS 130 is part of Durston’s award-winning line of precision tools, trusted by professionals since 1961.
NUMBER OF GROOVES |
11 |
---|---|
MAX. SHEET THICKNESS (MM) | |
ROLLER TYPE | |
ROLLER DIAMETER (MM) |
65 |
ROLLER LENGTH (MM) | |
SIDE EXTENSIONS |
2 & 1.5mm, 3, 4 |
MAX. WIRE CAPACITY (MM) | |
VOLTAGE |
110V, 220V |
RANGE |
