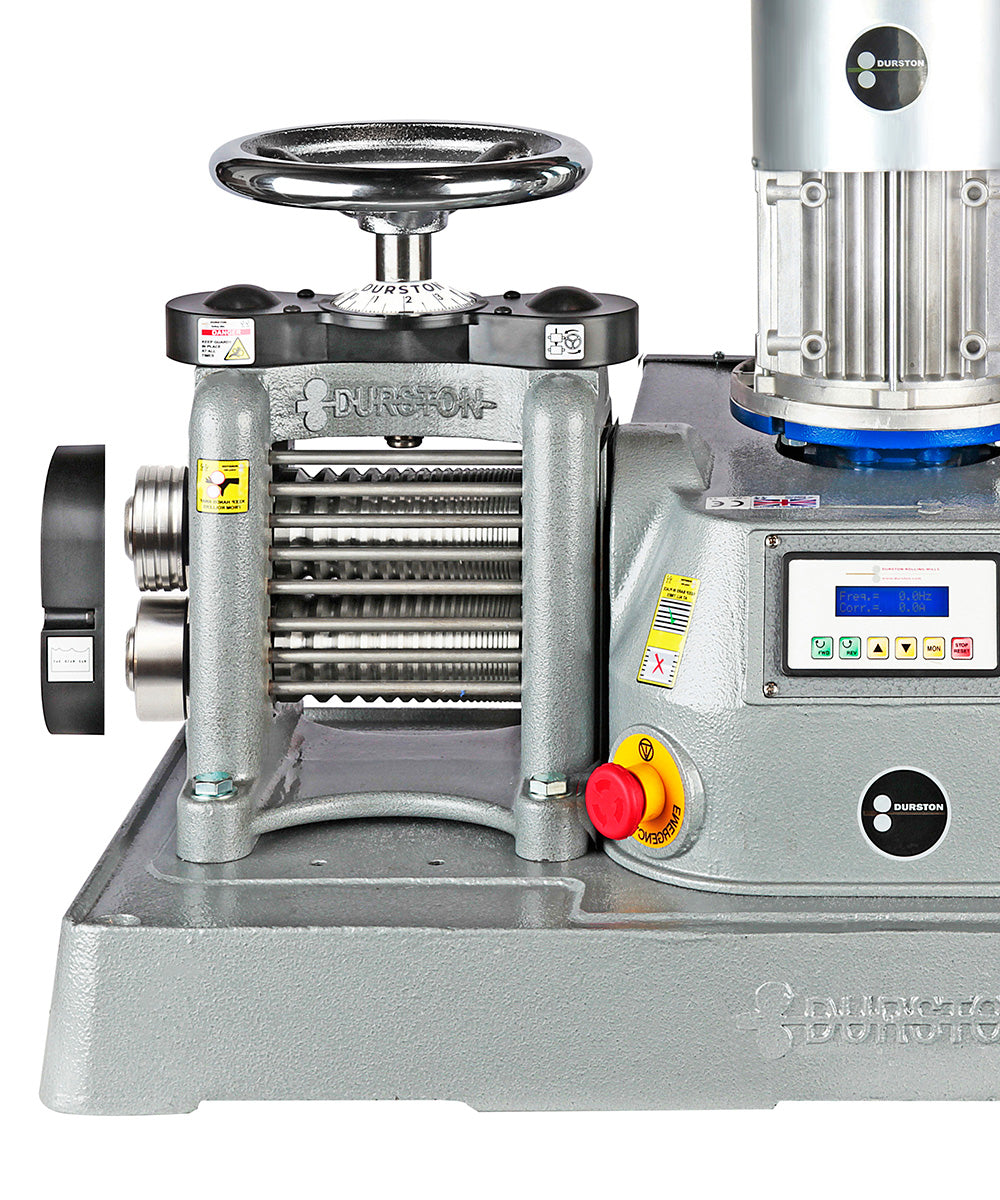

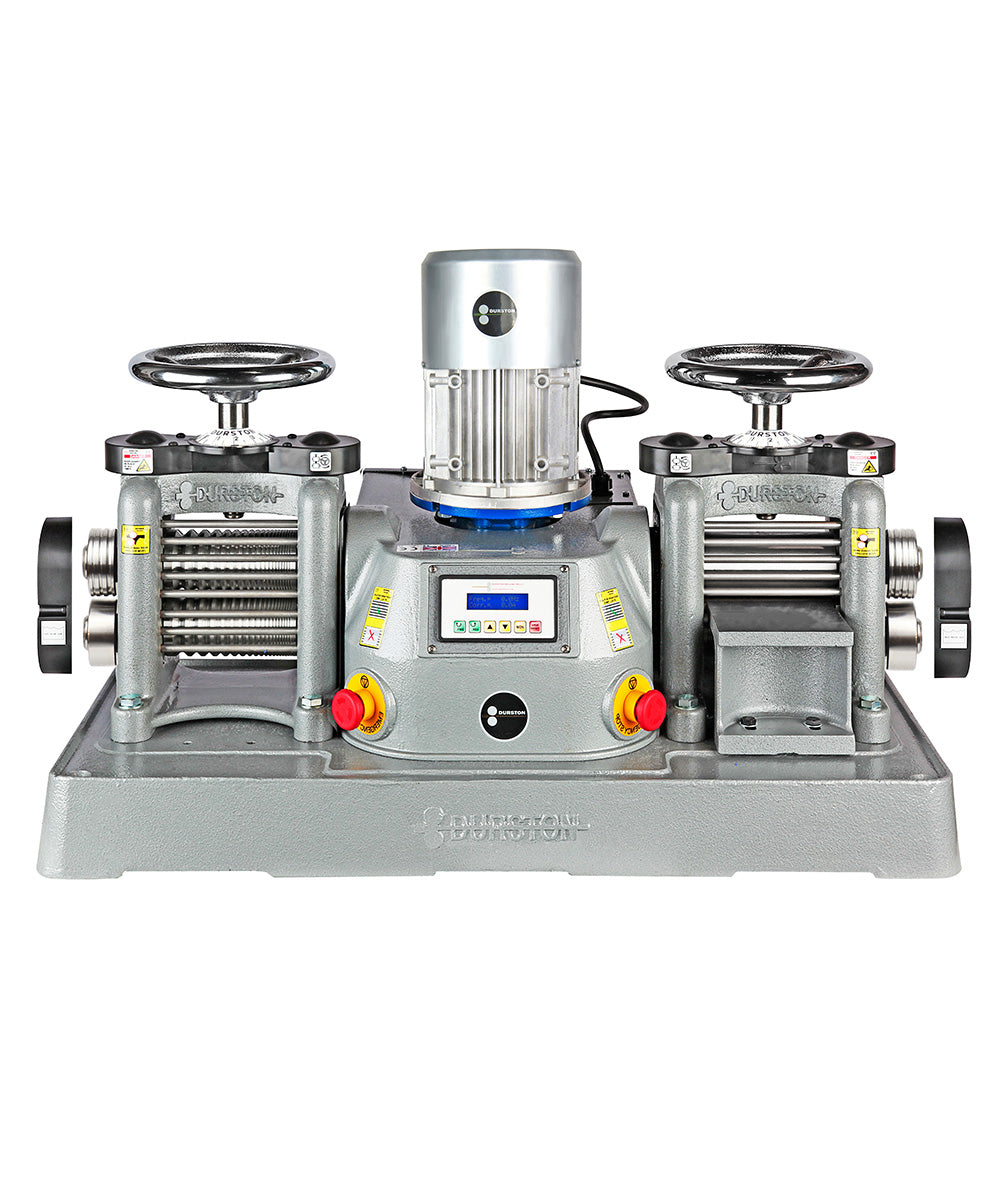

Durston DRM 130 Double Sided Power Mills


Price:
Sale price¥973,500

Description

Durston Tools is the market leader in precision rolling mills and no wonder; the DRM 130 Double-Sided Powered Rolling Mill is constructed from cast iron for optimal strength and rigidity. The 1.1 KW motor, is powerful enough for continuous operation which is why Durston Tools’ mills have such a long working life. This versatile package has variable speeds with forward and reverse, and a highly efficient near-silent operation. The rolls are specially induction hardened to 64 RC; the left barrel to a depth of 6mm, ensuring your flat rolls last a lifetime, and the right barrel offers 19 square grooves for wire forming from 10mm – 1mm. Two sets of extension rollers provide a total of seven half-rounds. Safety features include two emergency stop buttons, safety bars at the front and rear of the mill, guards covering the extension rollers at both ends as well as guards covering the top gears. The DRM 130 Double-Sided Powered Rolling Mill is part of Durston Tools’ award-winning range of products available since 1961.

PRODUCT LENGTH (MM)

830

PRODUCT WIDTH (MM)

390

PRODUCT HEIGHT (MM)

540

NUMBER OF GROOVES

19

MAX. SHEET THICKNESS (MM)

ROLLER TYPE

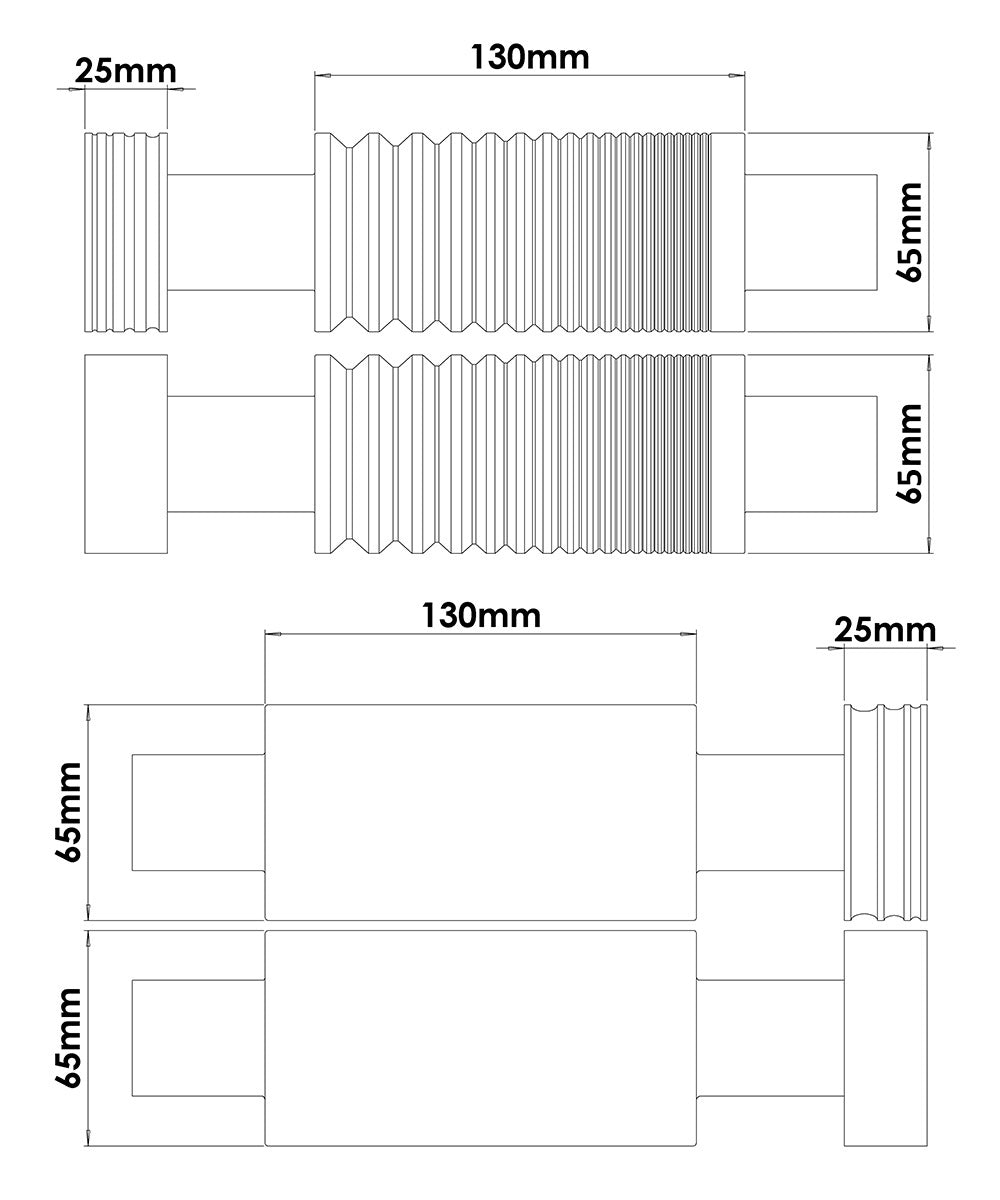

ROLLER DIAMETER (MM)

65

ROLLER LENGTH (MM)

SIDE EXTENSIONS

& 1.5mm, 2, 3, 3mm and 4, 6, 8

MAX. WIRE CAPACITY (MM)

VOLTAGE

110V, 220V

RANGE
