Description

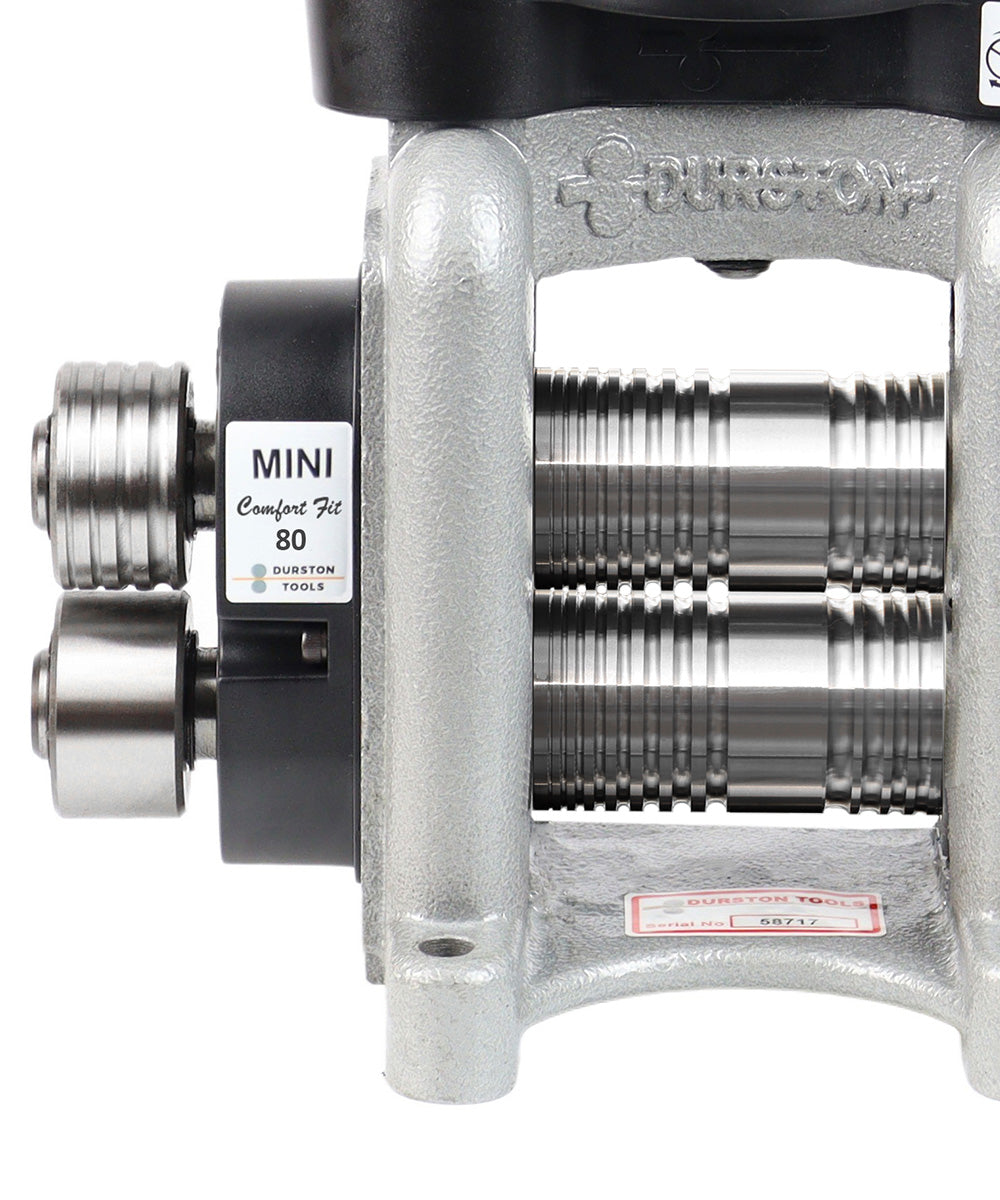

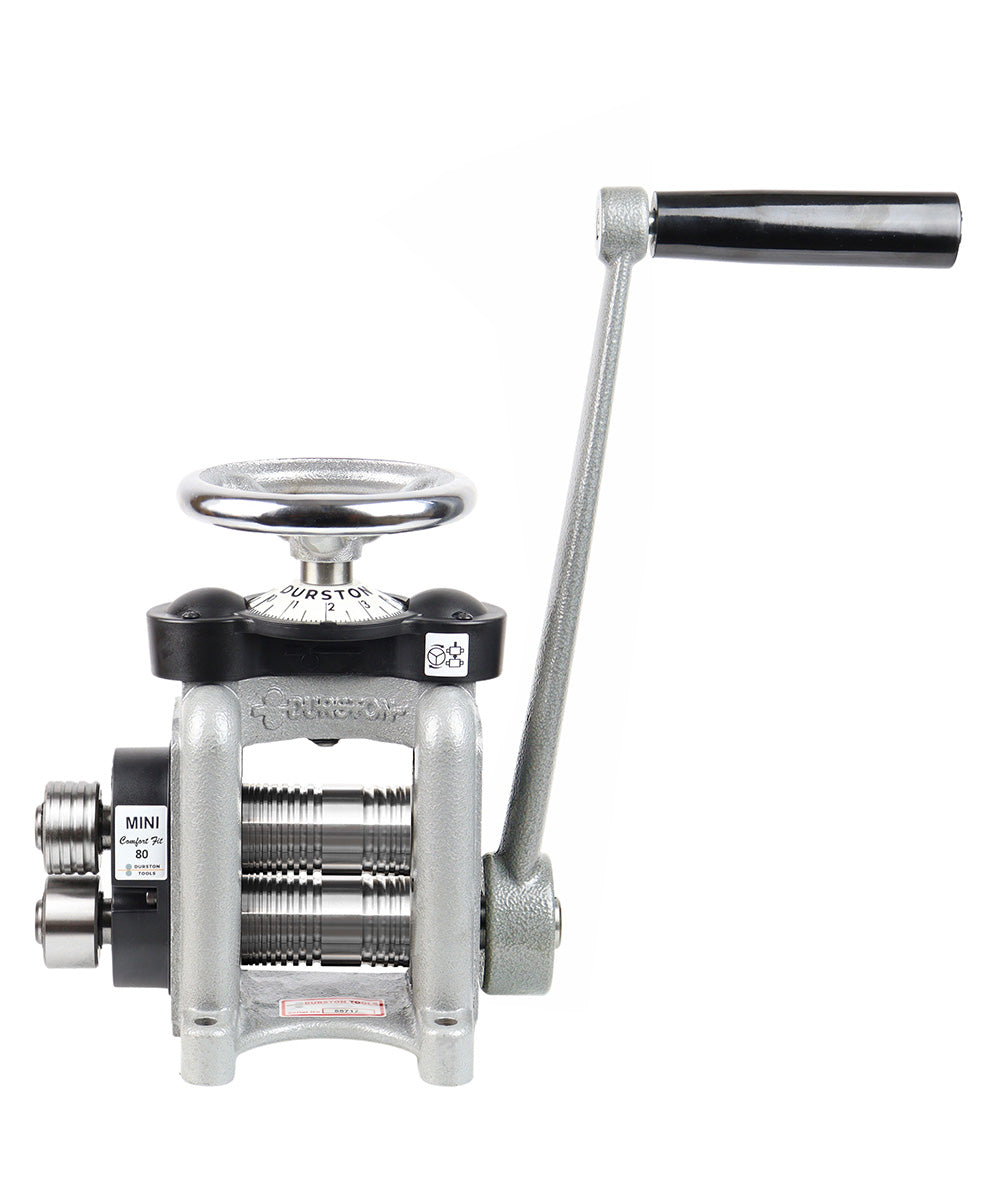

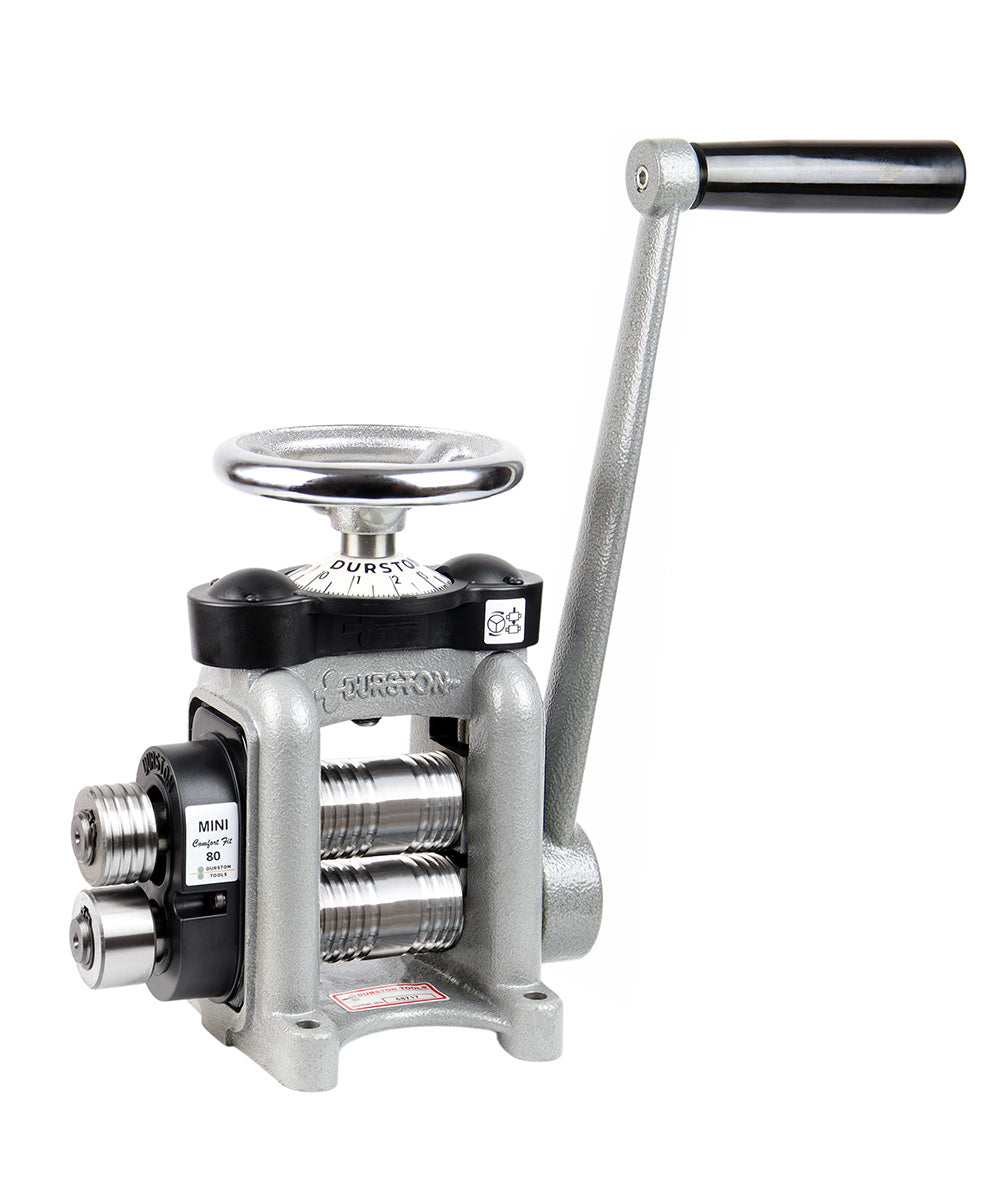

The Durston Mini Comfort Fit 80 is expertly engineered to meet the specific demands of jewellers rolling round wire. It delivers precise profiles for both full round and comfort fit bands, essential for crafting superior quality jewellery efficiently and reliably.
Constructed from a single piece of cast iron, this compact mill offers unmatched strength and rigidity. It features precision-hardened and ground rolls rated at 64RC, maintenance-free bearings, and large, easy-to-read calibrated discs for smooth operation.

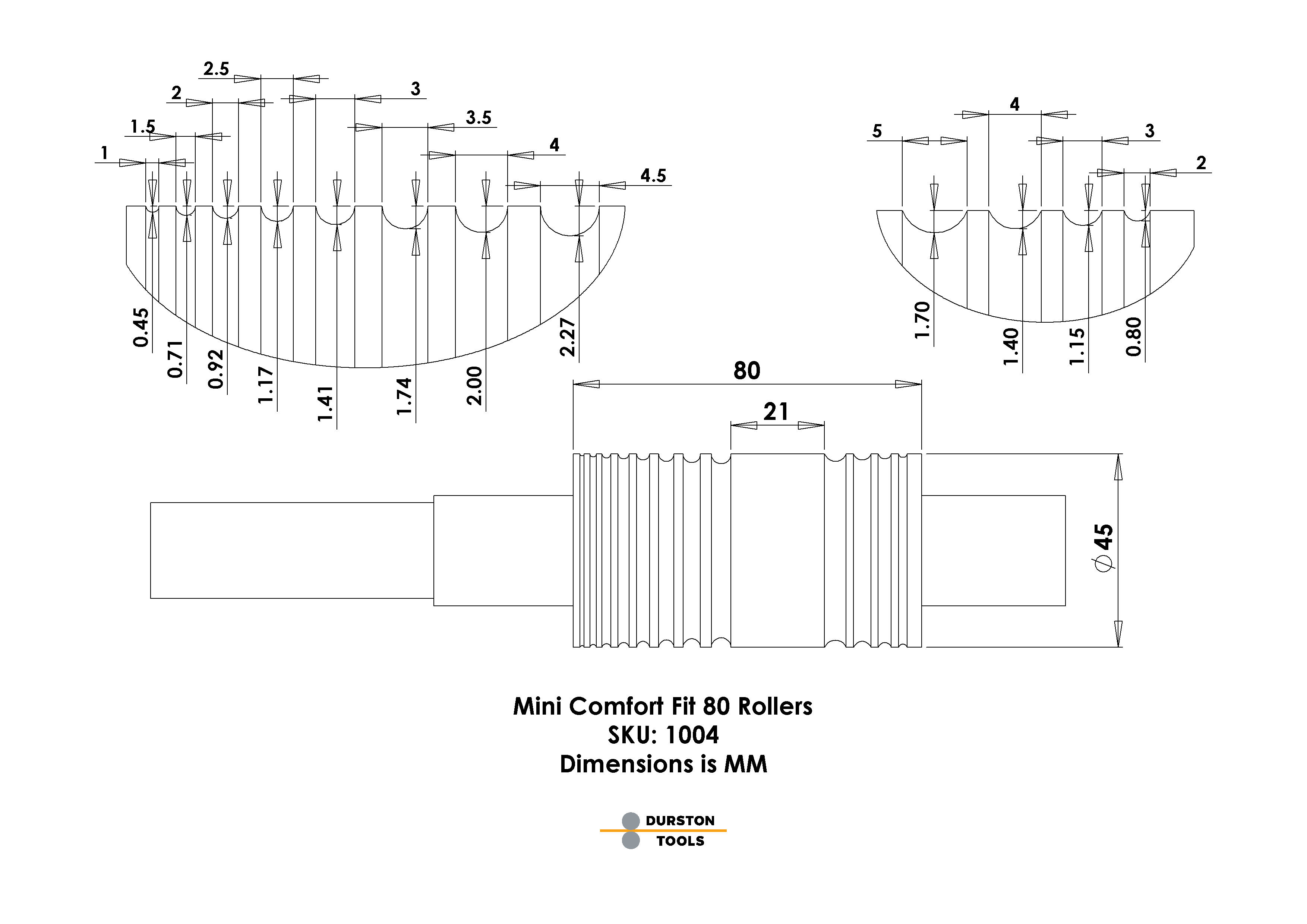

The main rolls include 8 full rounds (1mm to 4.5mm), 4 comfort fit rounds (2.5mm to 5mm), and a 21mm flat rolling area for versatile sheet metal work. Additionally, it comes with four side extension half-rounds (D shapes) in 4mm, 3mm, 2mm, and 1.5mm for enhanced versatility in wire shaping.
Part of Durston’s award-winning product range since 1961, the Mini Comfort Fit 80 combines robustness, quality, and precision for professional and hobbyist jewellers alike. For safety, secure mounting is recommended, with various dedicated stands available to suit your workspace.
| PRODUCT LENGTH (MM) |
420 |
|---|---|
| PRODUCT WIDTH (MM) |
170 |
| PRODUCT HEIGHT (MM) |
400 |
| GEARBOX | |
| NUMBER OF GROOVES |
12 |
| MAX. SHEET THICKNESS (MM) | |
| ROLLER TYPE | |
| ROLLER DIAMETER (MM) |
45 |
| ROLLER LENGTH (MM) | |
| SIDE EXTENSIONS |
4, 3, 2, 1.5mm |
| MAX. WIRE CAPACITY (MM) |
