Description

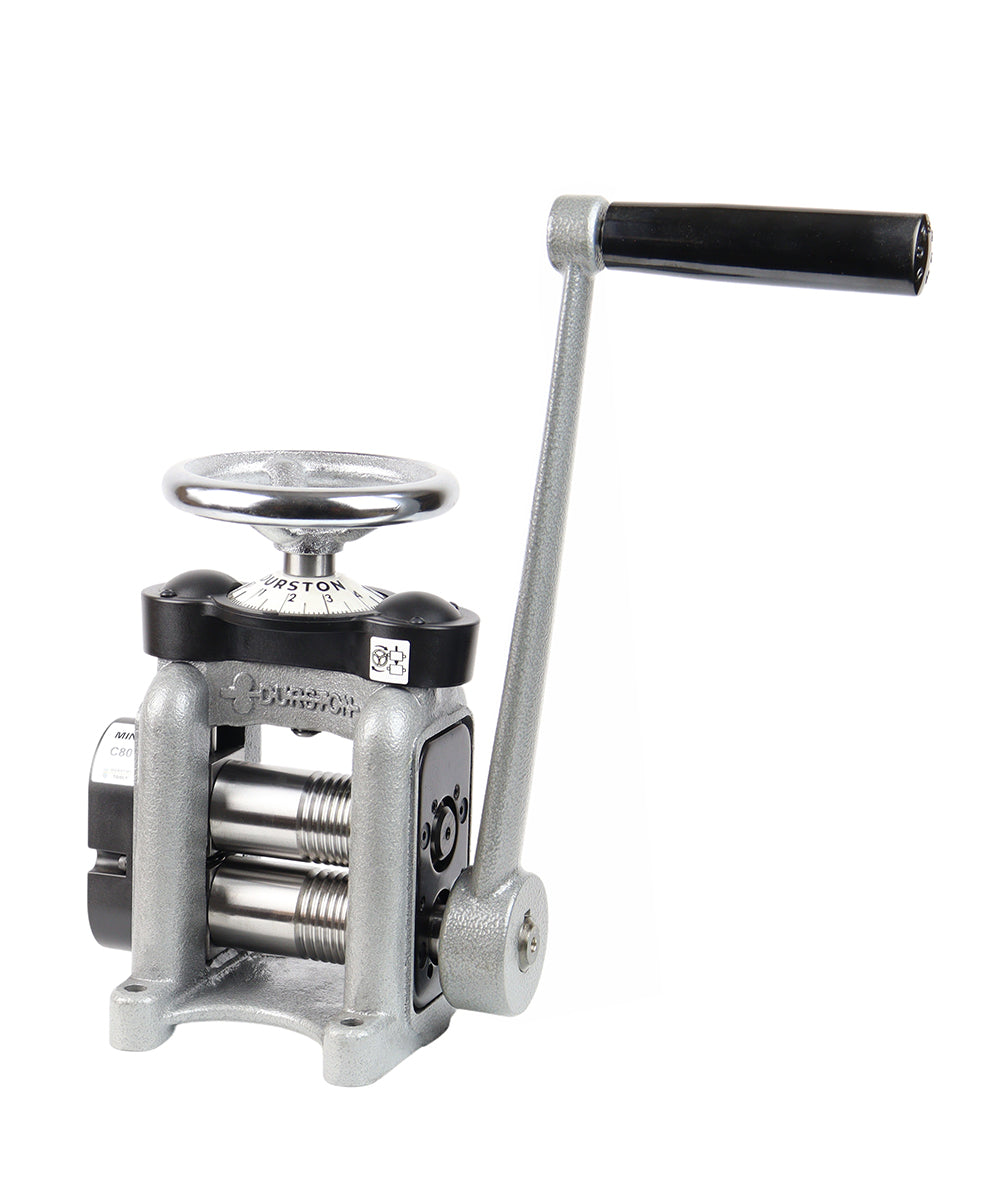

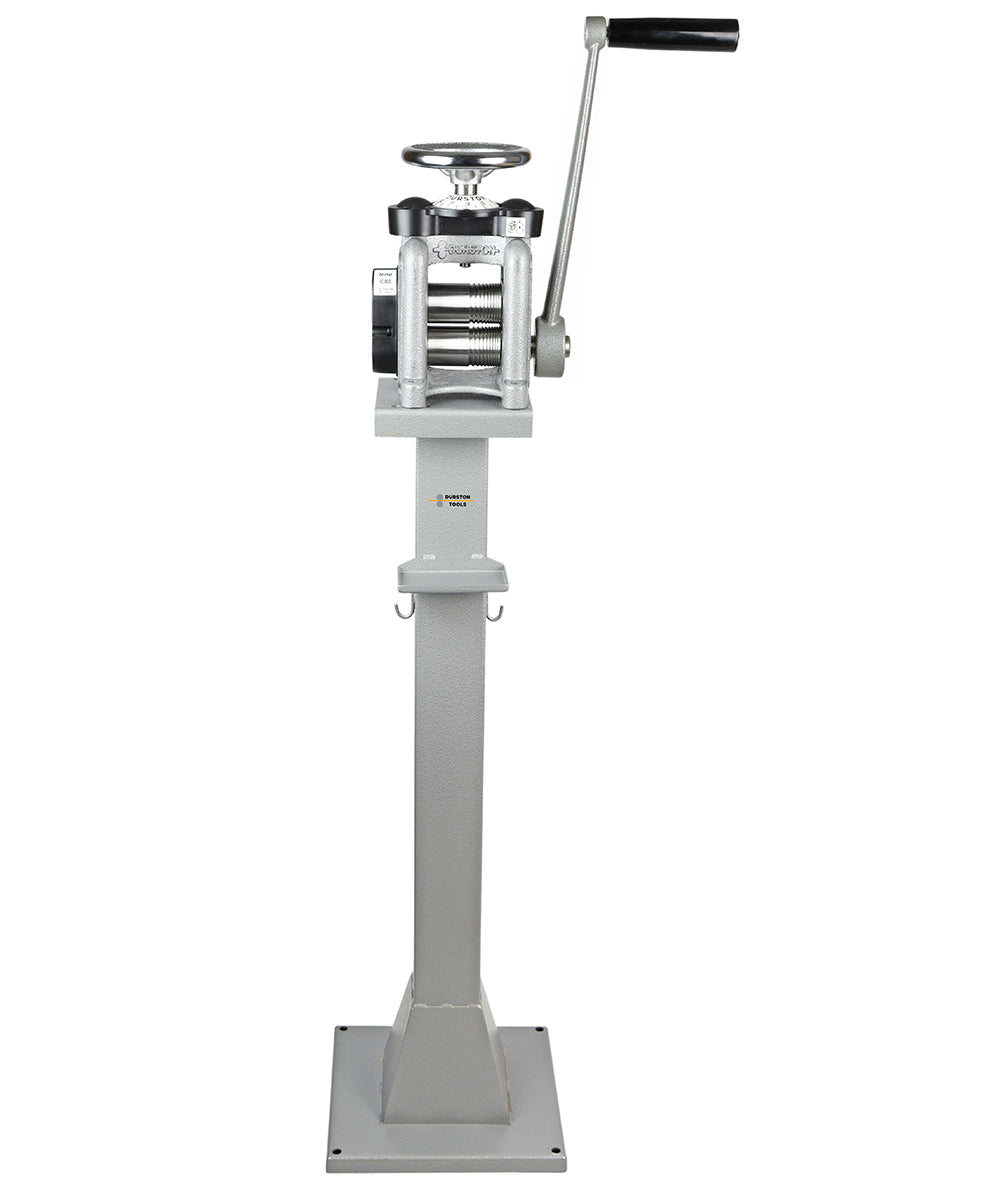

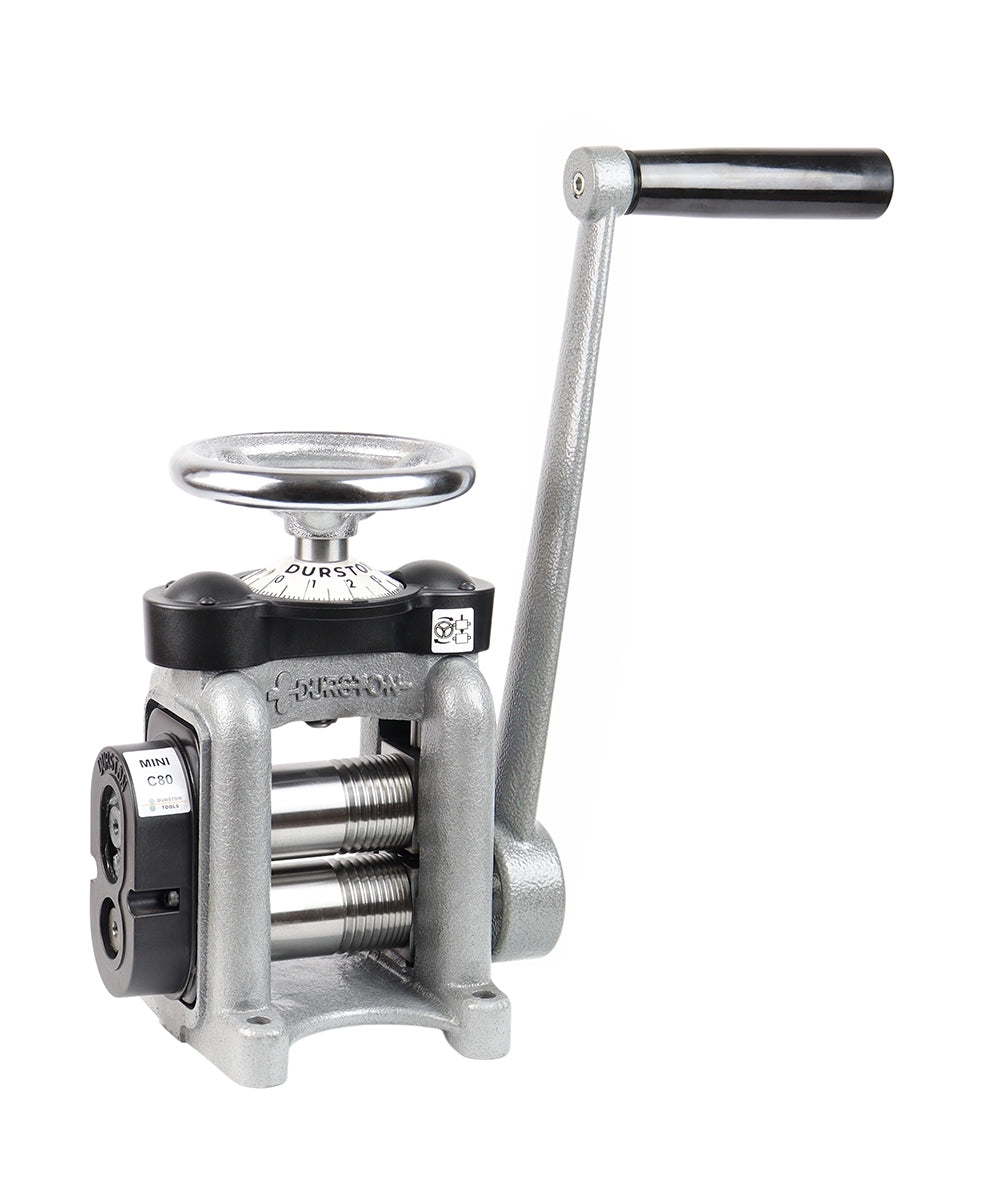

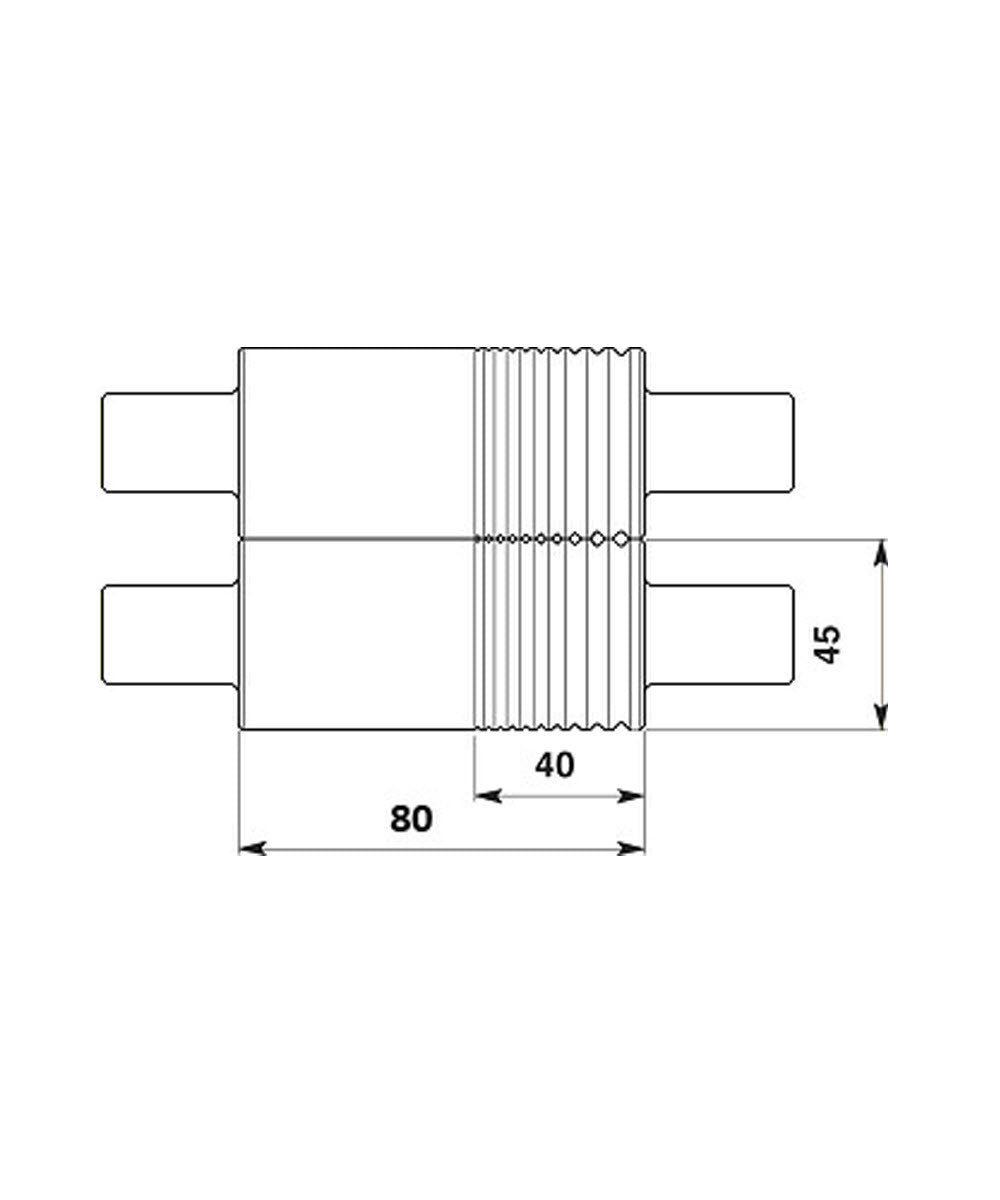

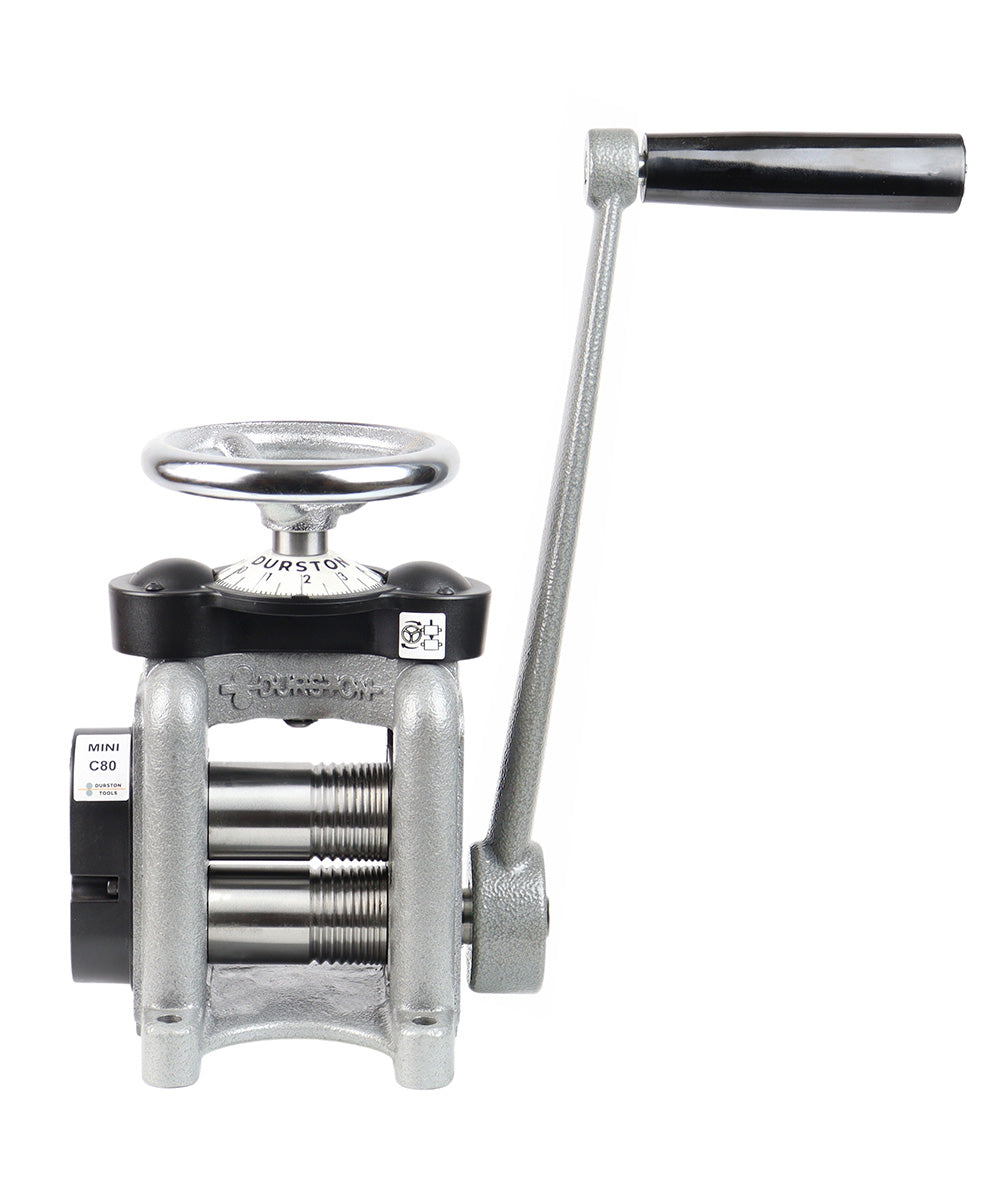

Experience precision and reliability with the Durston Mini C80 Rolling Mill, featuring a solid one-piece cast iron body for maximum strength and durability. Its compact design offers a full set of professional features—including maintenance-free bearings and precision-hardened rolls rated at 64RC, ensuring exceptional consistency and longevity. Nine wire shaping grooves from 6.5mm to 1mm support versatile wire forming, while the 80mm wide rollers and 45mm diameter accommodate metal sheets up to 5mm thick. Easy-to-read calibrated discs simplify operation, making this mill ideal for a range of jewelry applications. As part of Durston’s award-winning range trusted since 1961, the Mini C80 provides robust build quality and dependable results. For safety and best performance, securely fasten your mill and choose from dedicated Durston stands for setup flexibility.
| PRODUCT LENGTH (MM) |
370 |
|---|---|
| PRODUCT WIDTH (MM) |
170 |
| PRODUCT HEIGHT (MM) |
400 |
| GEARBOX | |
| NUMBER OF GROOVES |
9 |
| MAX. SHEET THICKNESS (MM) | |
| ROLLER TYPE | |
| ROLLER DIAMETER (MM) |
45 |
| ROLLER LENGTH (MM) | |
| SIDE EXTENSIONS |
4, 3, 2, 1.5mm |
| MAX. WIRE CAPACITY (MM) |
