Description

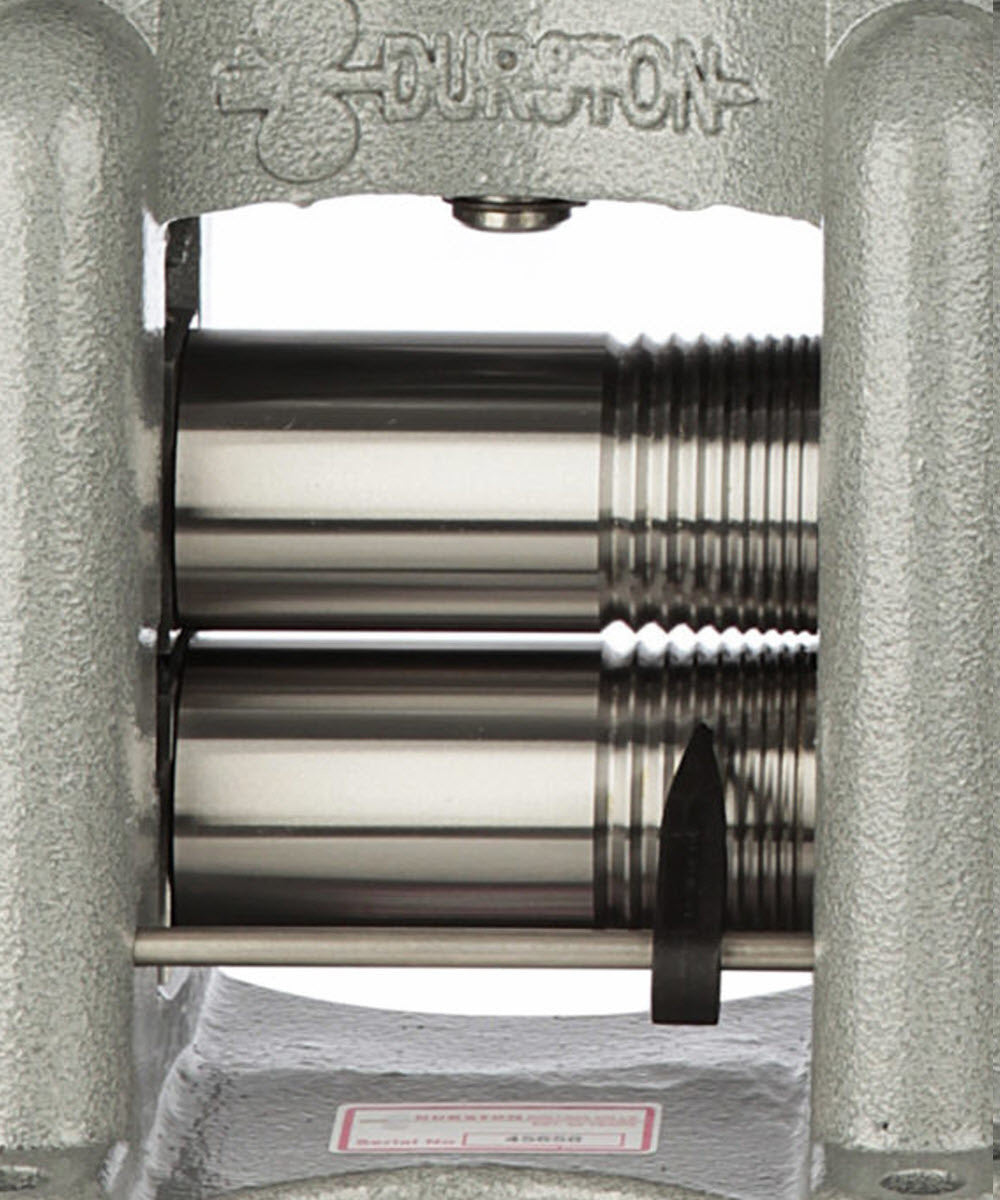

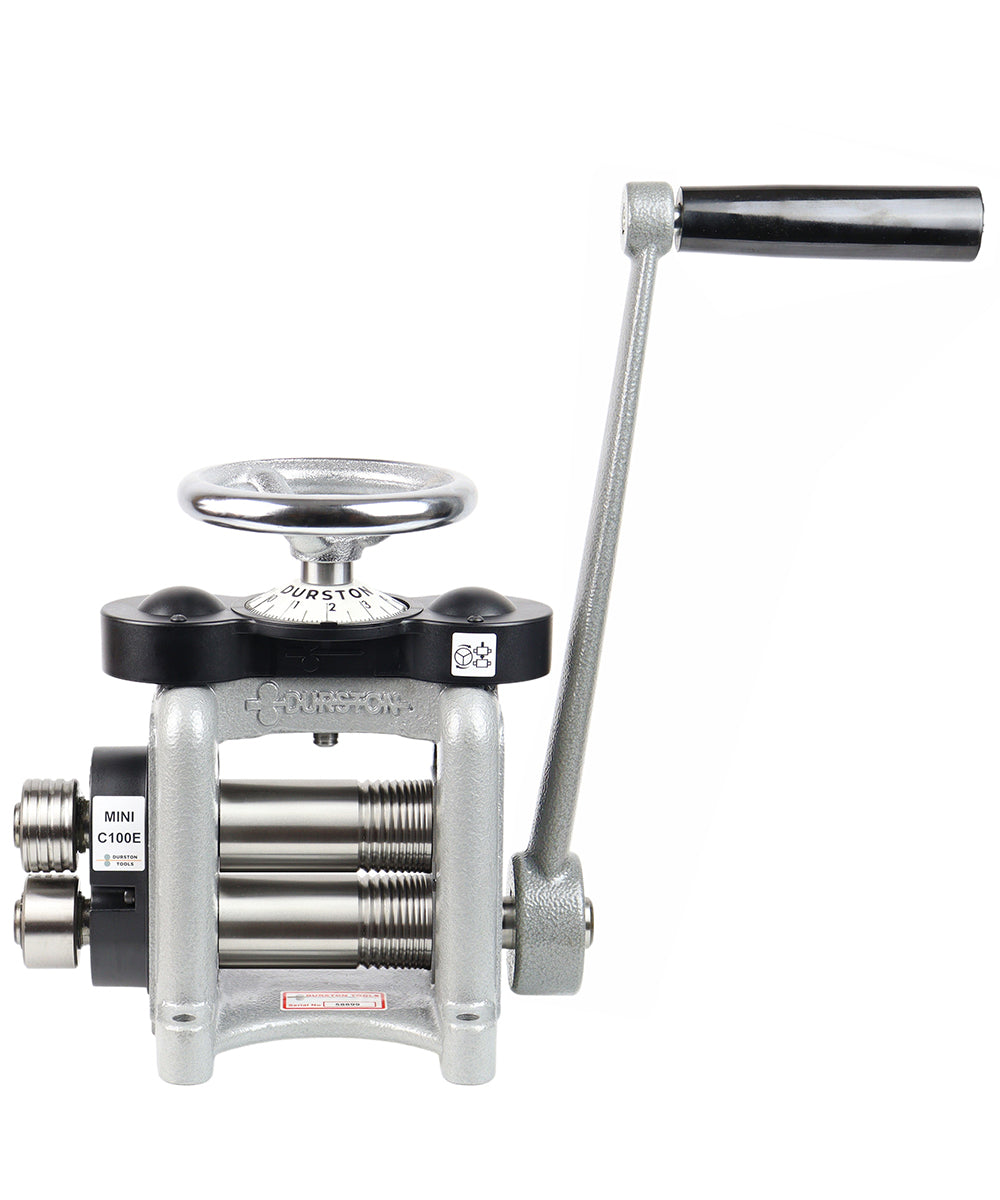

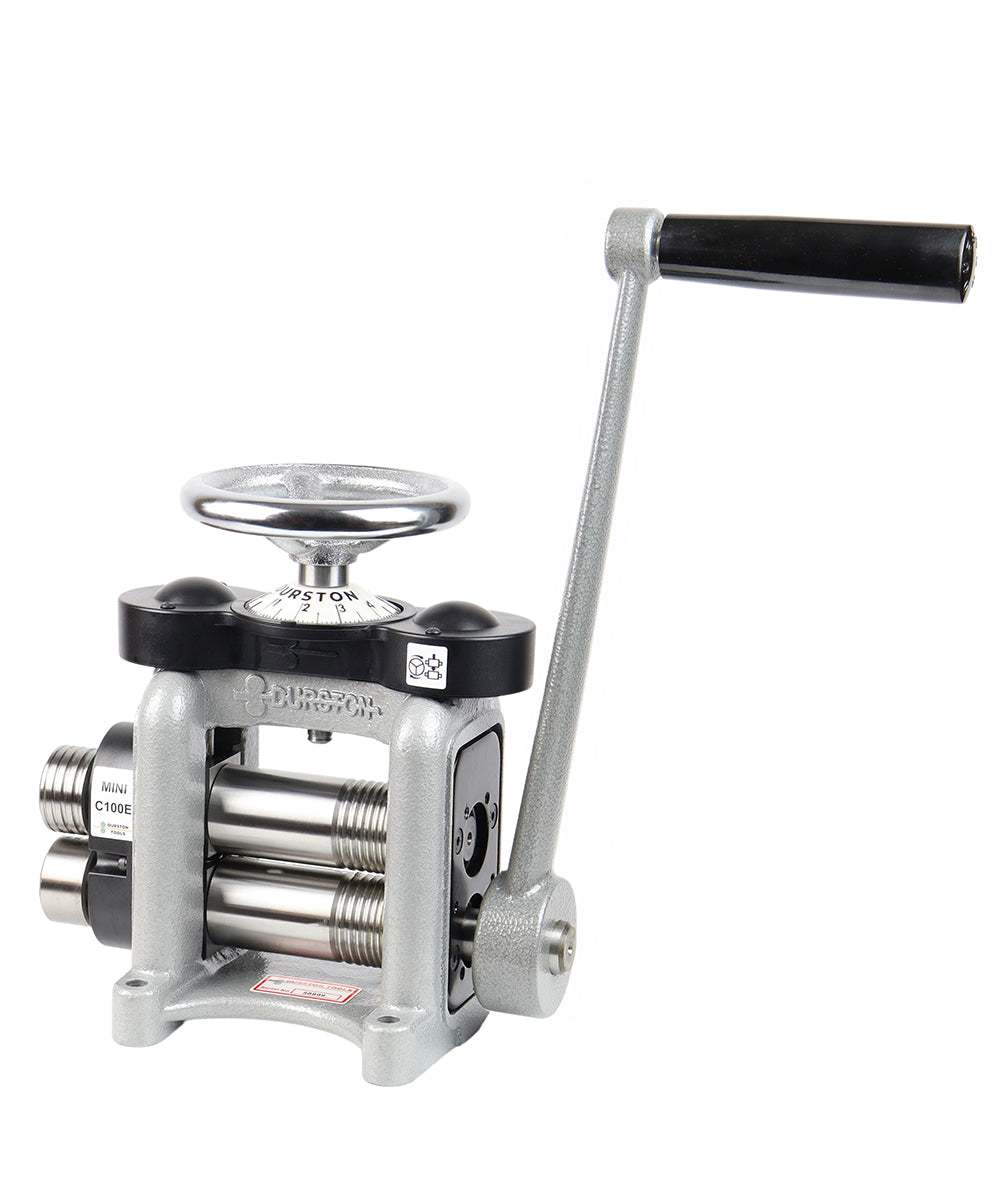

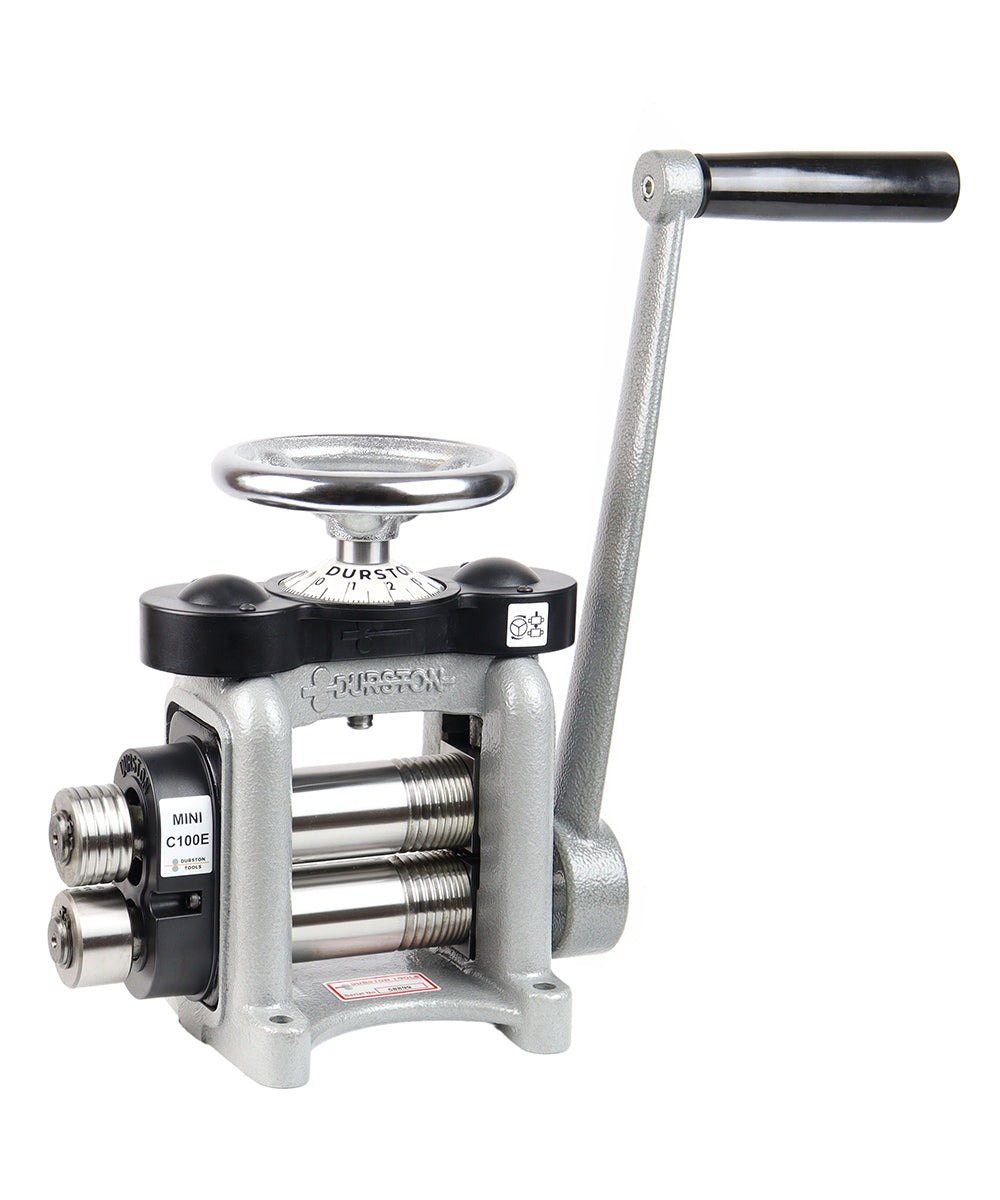

The Durston Mini C100E Rolling Mill is a versatile and budget-friendly upgrade to the Mini 80, with a wider 100mm milling width for increased capacity. Constructed from a single piece of cast iron for outstanding strength and rigidity, this mill features maintenance-free bearings and a direct drive system to guarantee consistent, smooth rolling for life.
It handles sheet metal up to 5mm thick and wire diameters up to 6.5mm, with nine precise wire grooves from 6.5mm to 1mm for accurate shaping. The mill also includes four half-round extension rollers to boost versatility, alongside large, easy-to-read calibrated discs and a conveniently placed wheel for effortless operation. Trusted globally since 1961, the Mini C100E delivers durable, professional-grade performance at an economical price.
| PRODUCT LENGTH (MM) |
440 |
|---|---|
| PRODUCT WIDTH (MM) |
170 |
| PRODUCT HEIGHT (MM) |
400 |
| GEARBOX | |
| NUMBER OF GROOVES |
9 |
| MAX. SHEET THICKNESS (MM) | |
| ROLLER TYPE | |

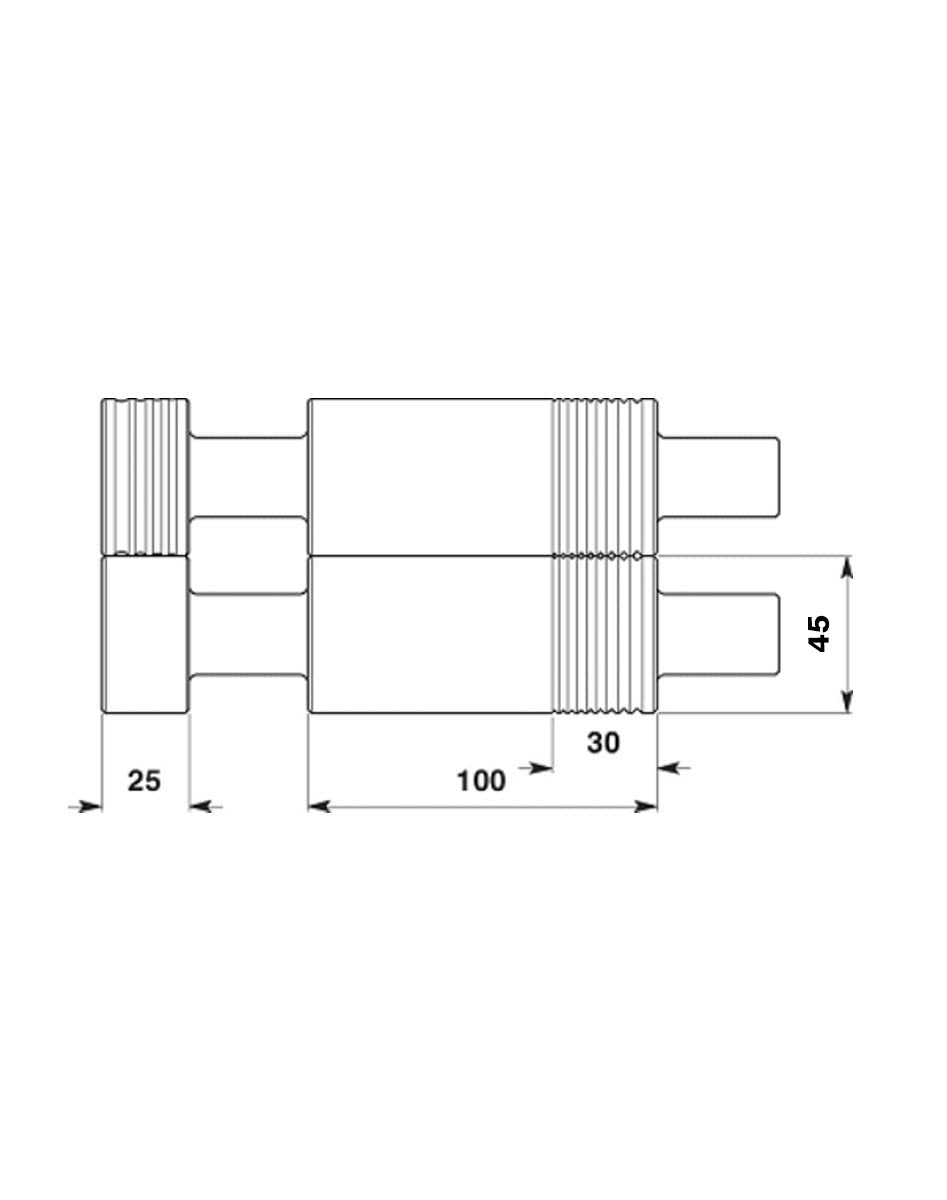

| ROLLER DIAMETER (MM) |
45 |
| ROLLER LENGTH (MM) | |
| SIDE EXTENSIONS |
4, 3, 2, 1.5mm |
| MAX. WIRE CAPACITY (MM) |
