Description

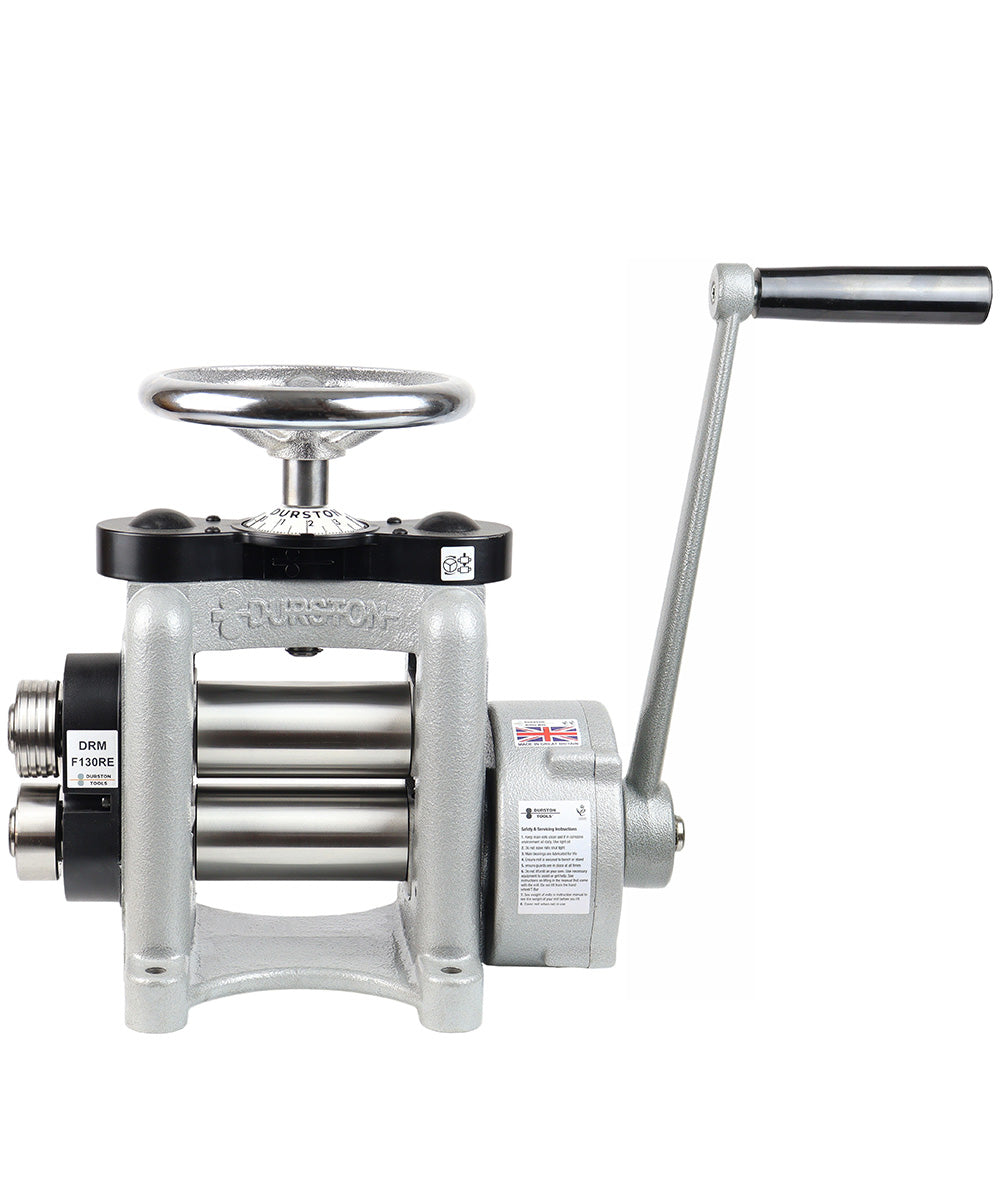

The Durston DRM F130RE Rolling Mill features a powerful 5-to-1 reduction self-lubricating gearbox designed for superb smoothness and power when rolling flat sheet metals up to 130mm wide and 6mm thick. Engineered specifically for professional jewelry makers, it combines strength, precision, and versatility.

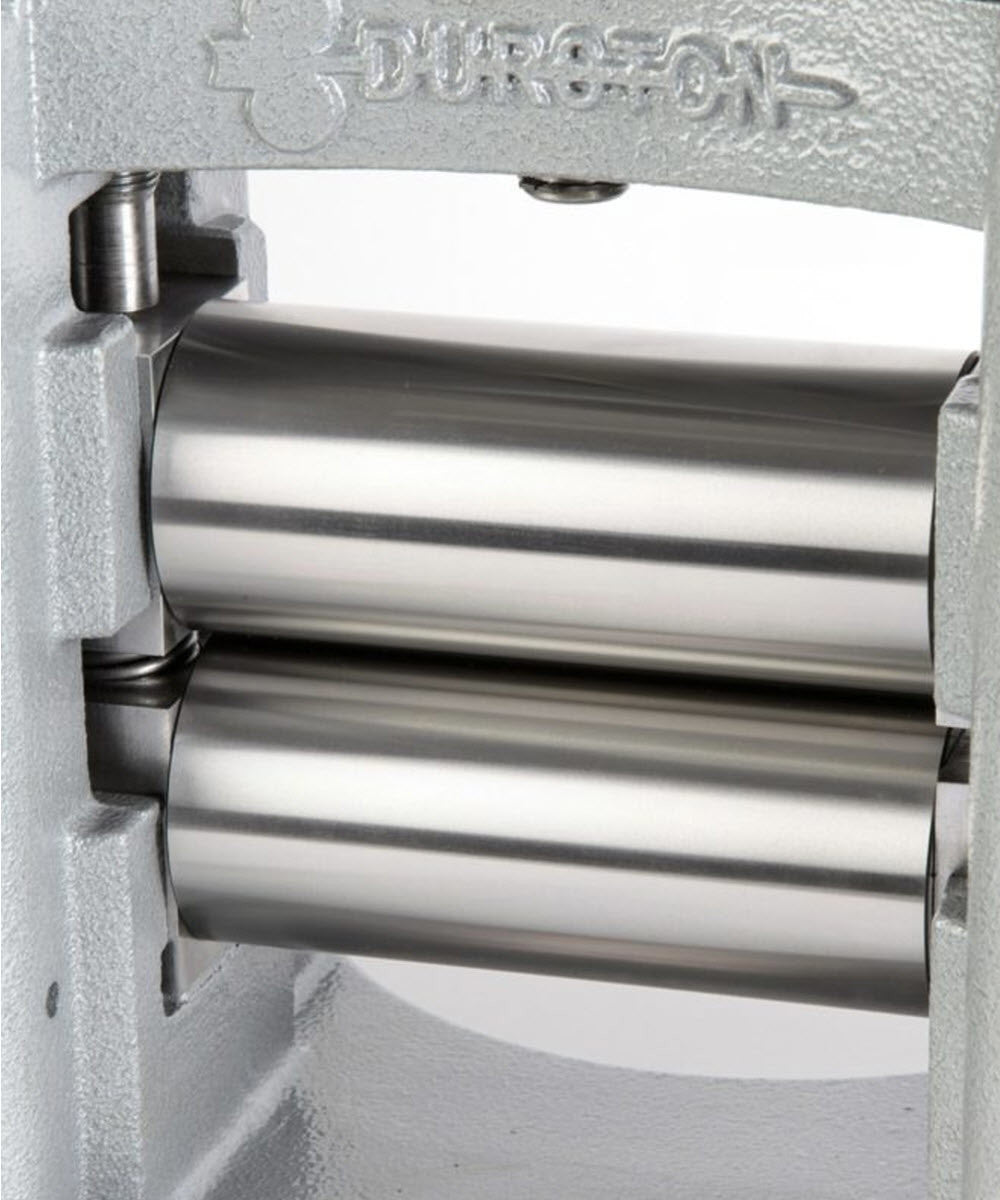

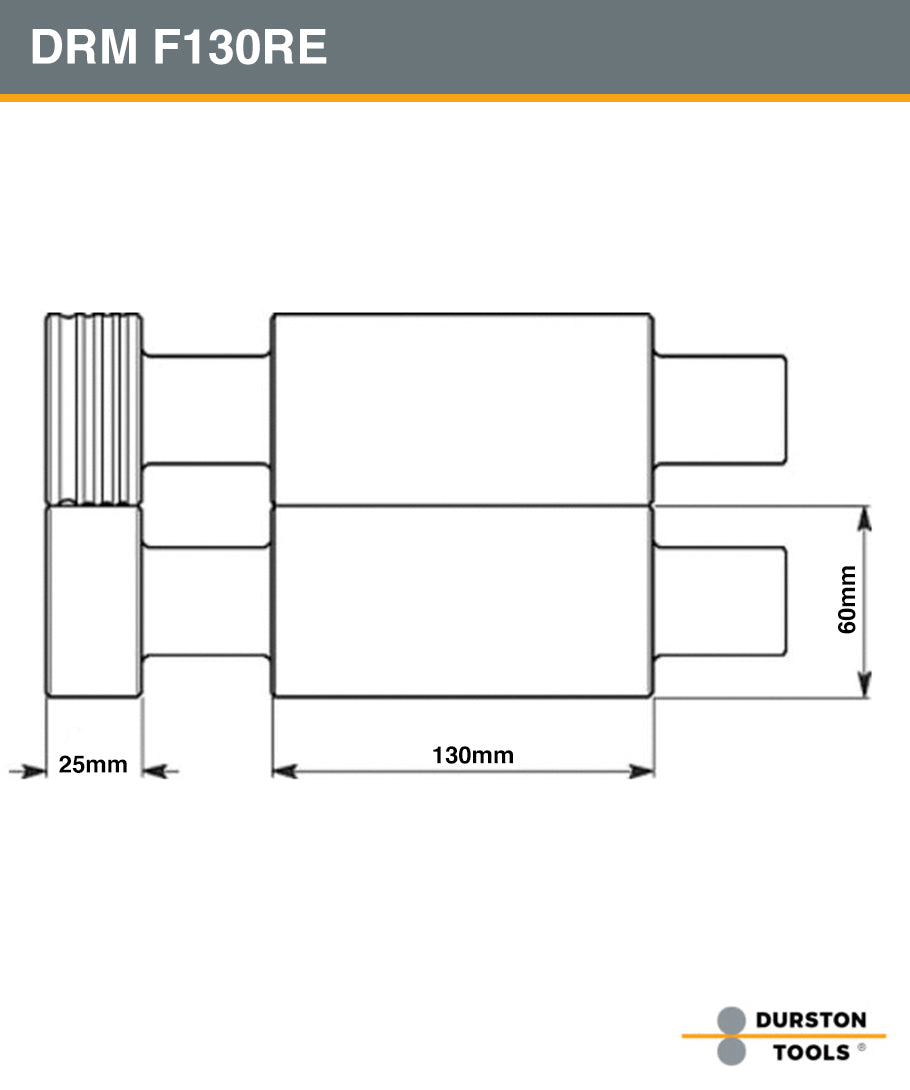

This model includes four half-round side extension rollers measuring 4mm x 1.25mm, 3mm x 1mm, 2mm x 0.75mm, and 1.5mm x 0.5mm, providing enhanced flexibility for shaping half-round wires and detailed profiles. The main rolls, induction hardened to RC64, and the solid cast iron body ensure exceptional durability and a lifetime of consistent rolling performance.
Adjustments are simple and precise with the top-mounted calibrated wheel, allowing for fine control over the roll gap. The DRM F130RE delivers professional-grade rolling results with smooth, reliable operation, making it a trusted rolling mill for both serious hobbyists and professional jewelers alike.
| PRODUCT LENGTH (MM) |
570 |
|---|---|
| PRODUCT WIDTH (MM) |
230 |
| PRODUCT HEIGHT (MM) |
440 |
| GEARBOX |
5 to 1 |
| NUMBER OF GROOVES |
N/A |
| MAX. SHEET THICKNESS (MM) |
6 |
| ROLLER TYPE |
Agile |
| ROLLER DIAMETER (MM) |
60 |
| ROLLER LENGTH (MM) |
130 |
| SIDE EXTENSIONS |
4, 3, 2, 1.5mm |
| MAX. WIRE CAPACITY (MM) |
