Description

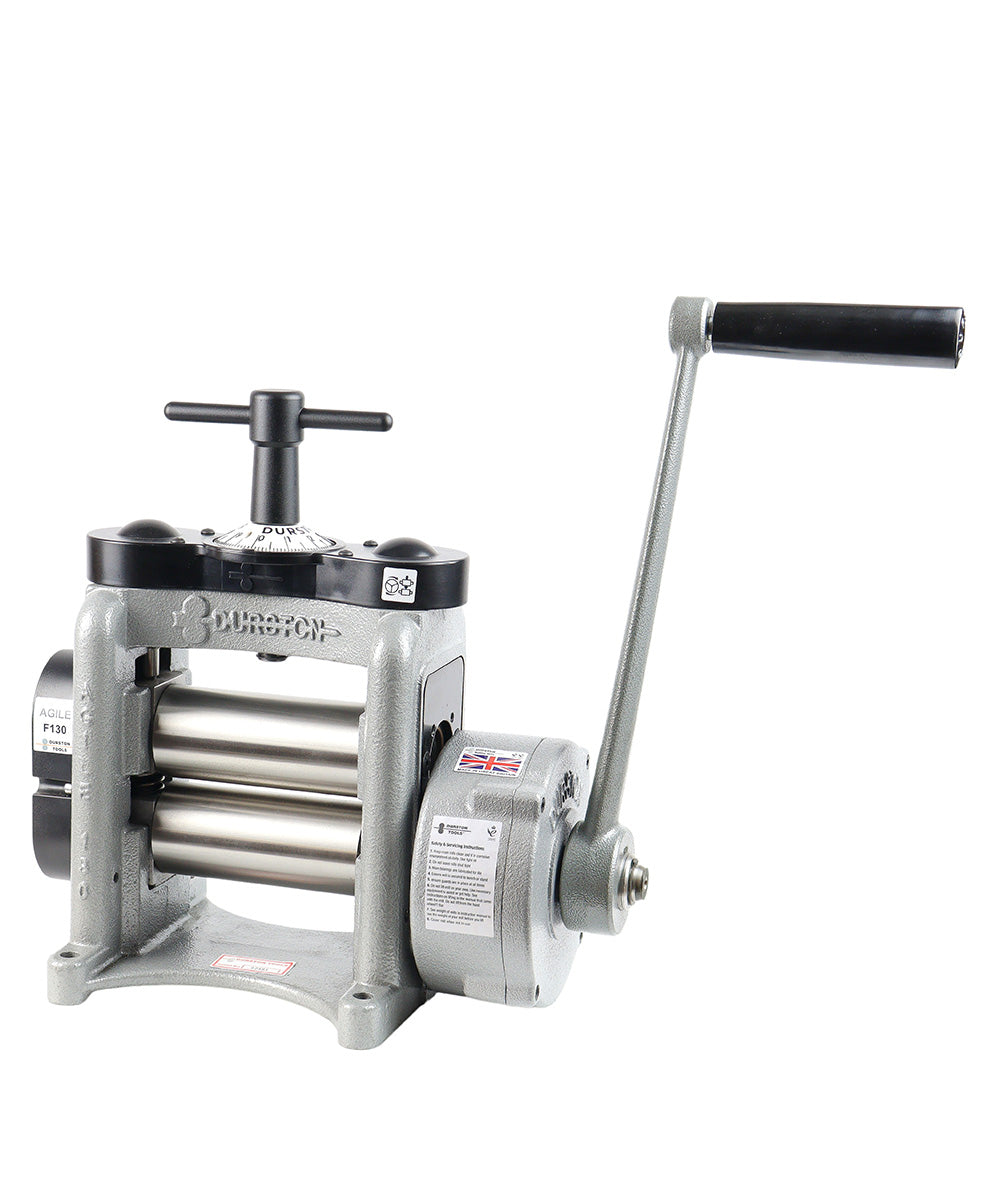

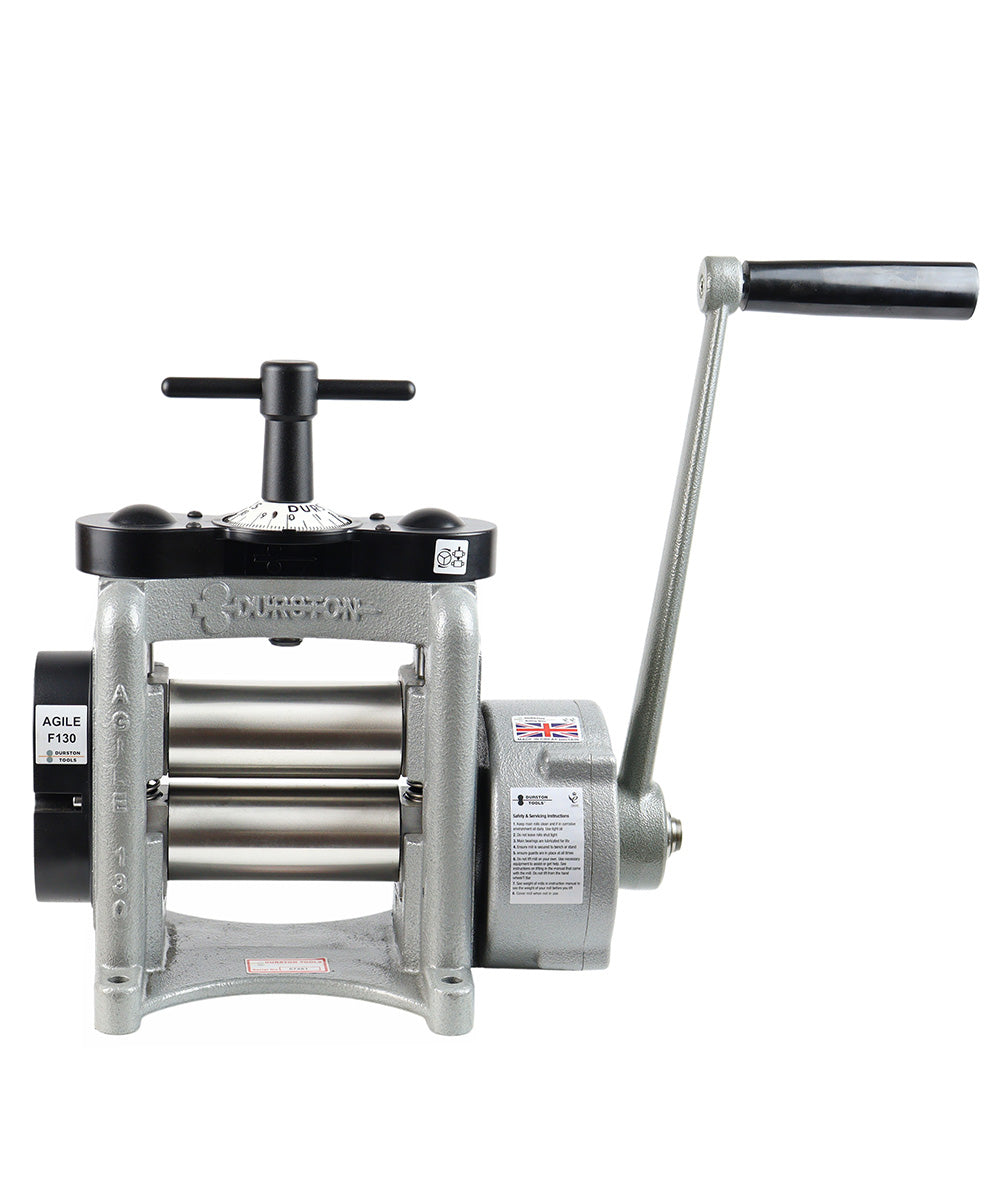

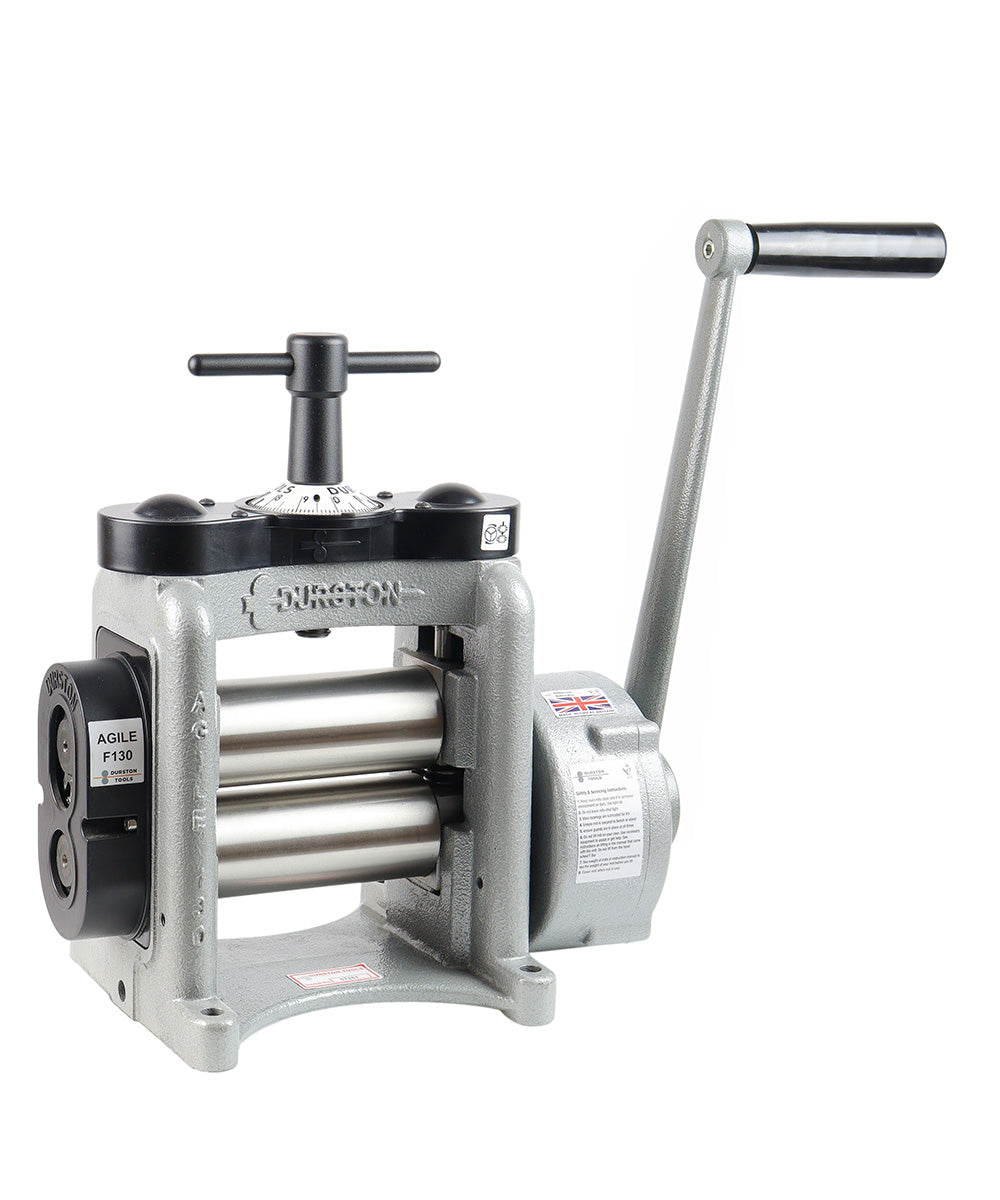

The Durston Agile F130 Rolling Mill is a specialized, high-quality sheet rolling mill and a special edition of Durston’s renowned rolling mill range. Designed without wire grooves, it is dedicated exclusively to rolling flat metal sheets.

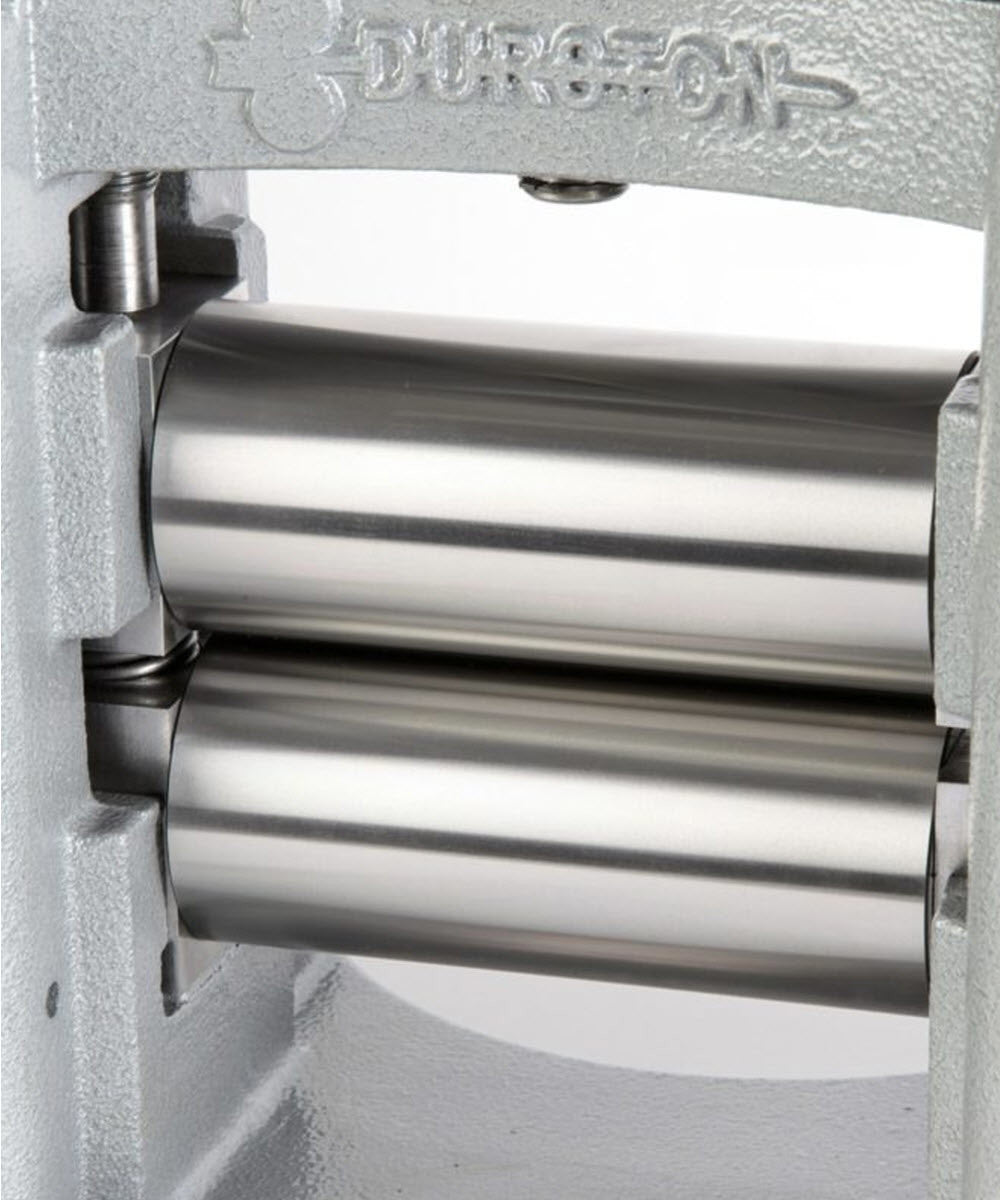

This model features a lightweight yet robust design with thinner frames that maintain full strength where needed. Its traditional T-bar handle allows precise adjustment, while the induction-hardened rolls (to 64 RC) and a main barrel hardened to 6mm depth ensure durability and a flawless finish. The primary roller includes five half-round grooves to enhance shaping versatility.
The Agile F130 has fully supported bearing blocks with self-lubricating, maintenance-free bearings to ensure smooth, consistent rolling. A heavy-duty 5:1 reduction gearbox with two specially formed gears ensures effortless operation, complemented by a protective guard around the top gears for safety. Part of Durston’s award-winning product line since 1961, the Agile F130 delivers professional-grade performance for serious metalworkers and jewellers.
| PRODUCT LENGTH (MM) |
540 |
|---|---|
| PRODUCT WIDTH (MM) |
220 |
| PRODUCT HEIGHT (MM) |
440 |
| GEARBOX |
5 to 1 |
| NUMBER OF GROOVES |
N/A |
| MAX. SHEET THICKNESS (MM) |
6 |
| ROLLER TYPE |
Agile |

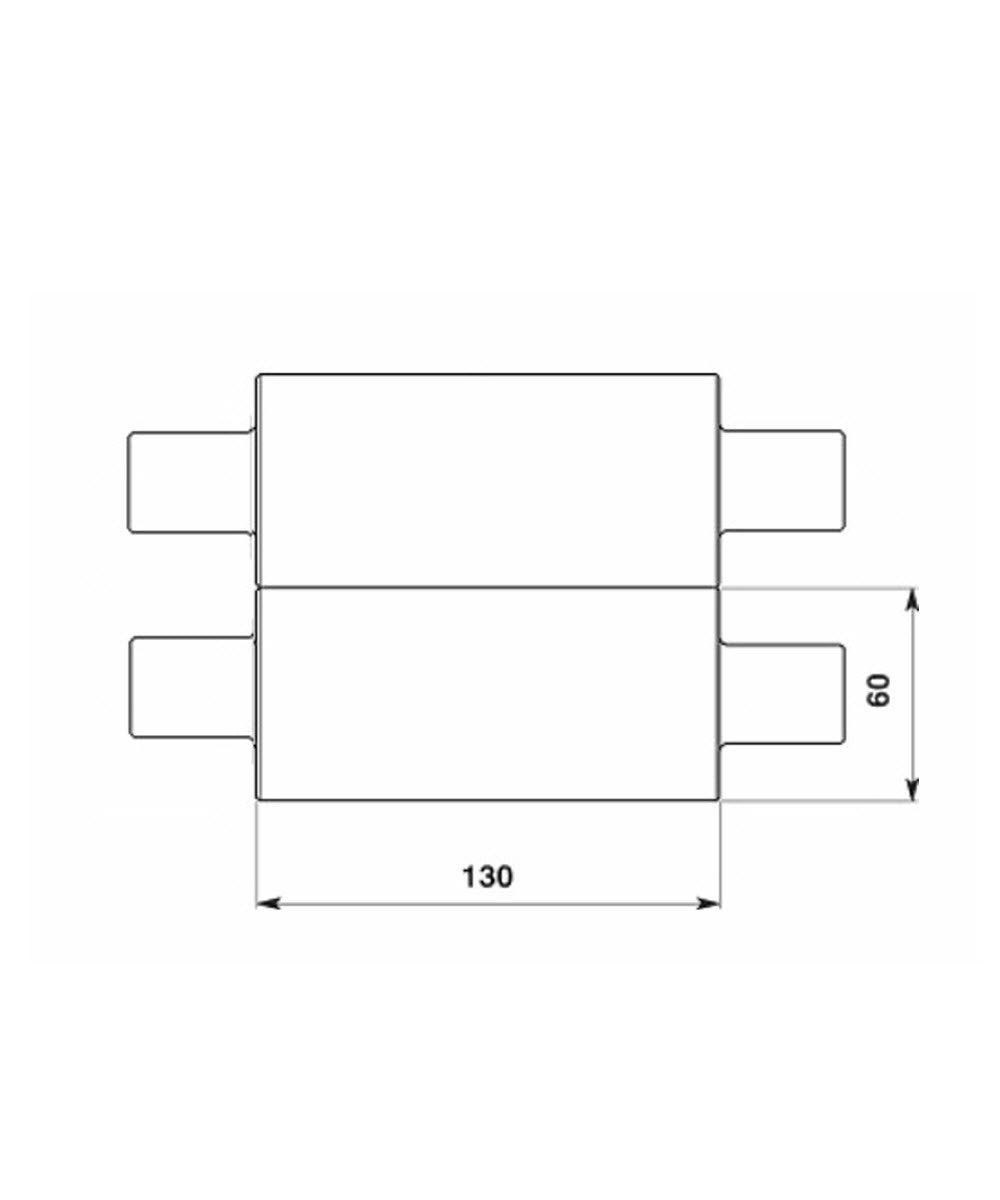

| ROLLER DIAMETER (MM) |
60 |
| ROLLER LENGTH (MM) |
130 |
| SIDE EXTENSIONS |
4, 3, 2, 1.5mm |
| MAX. WIRE CAPACITY (MM) |
