Description

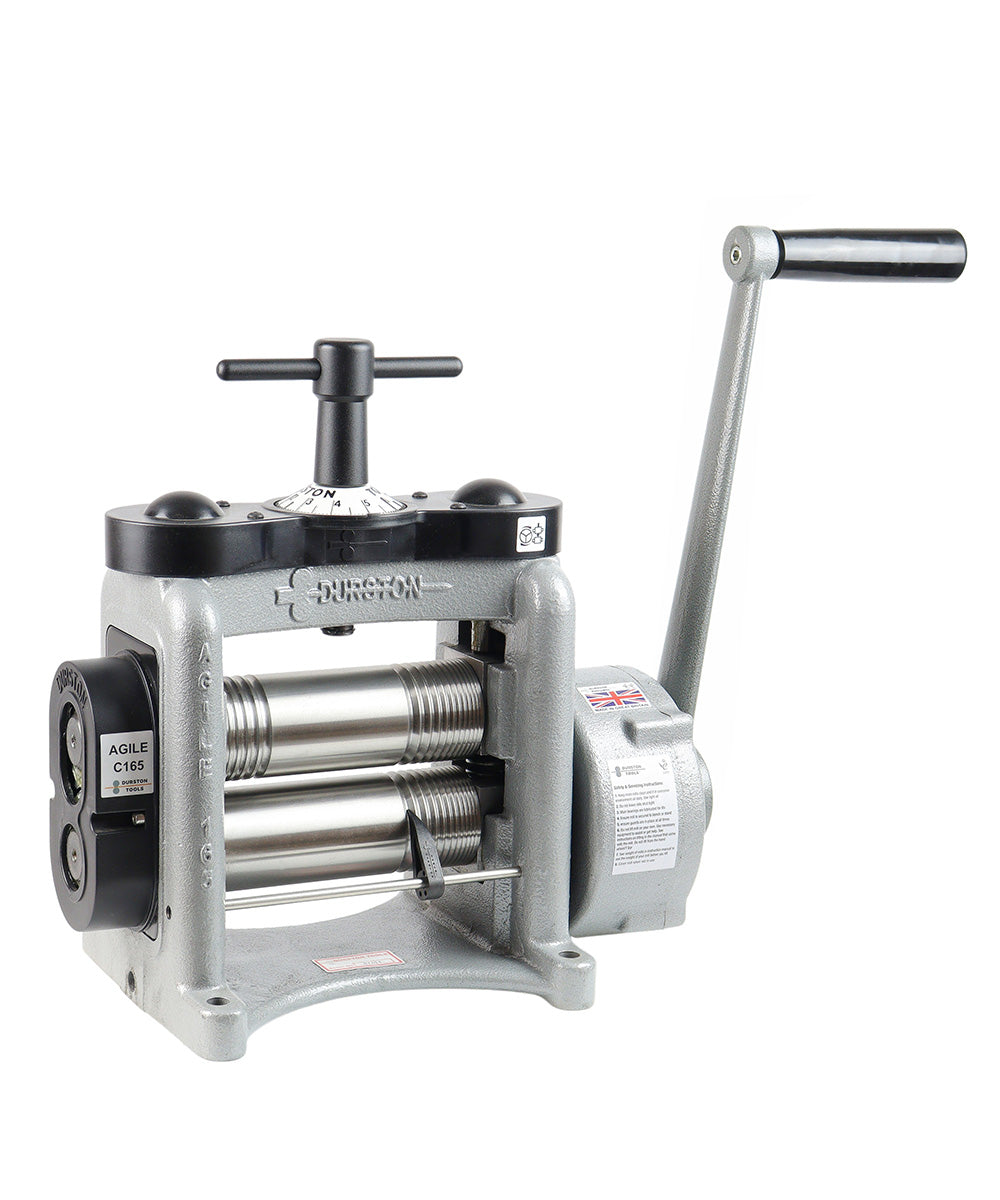

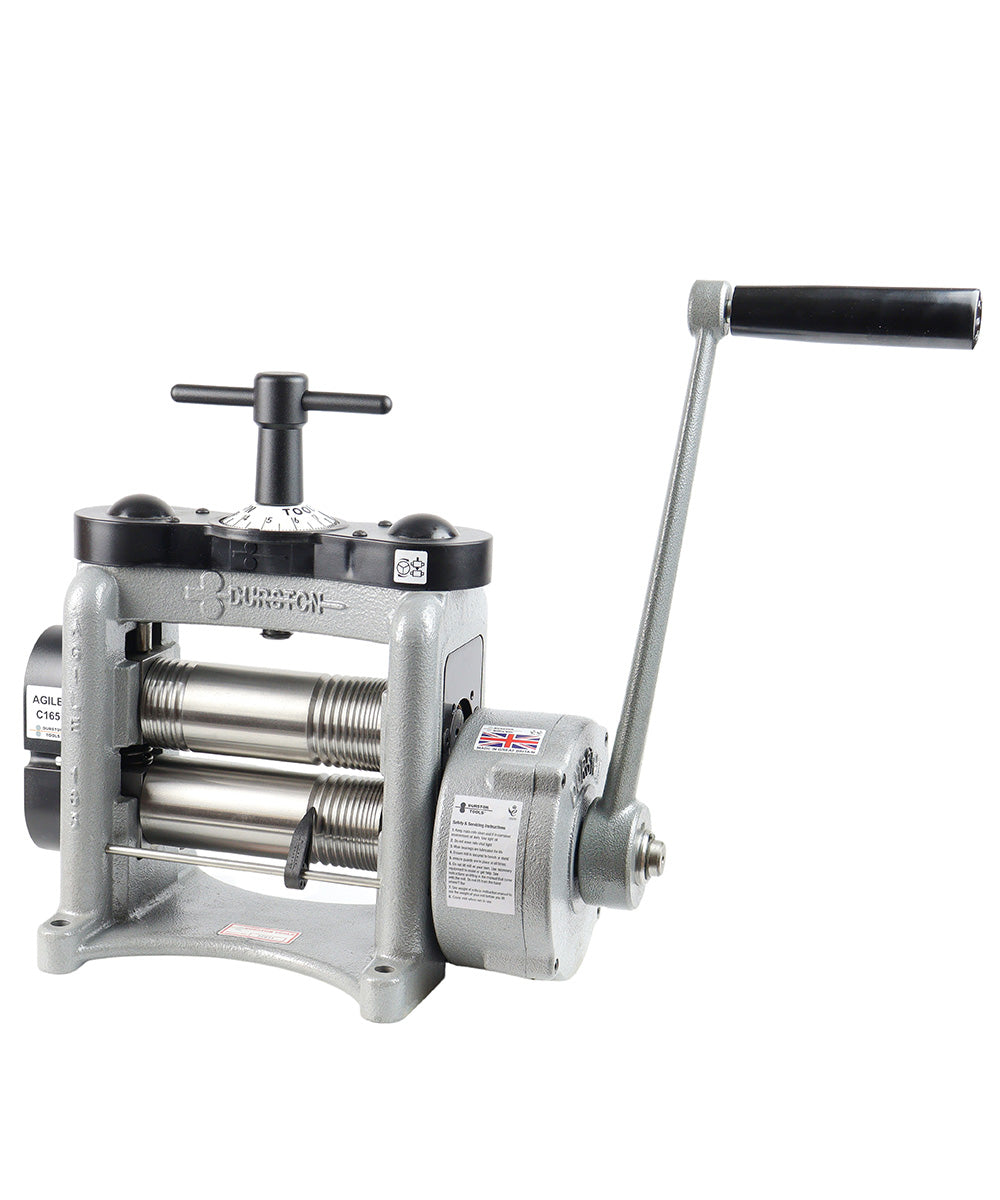

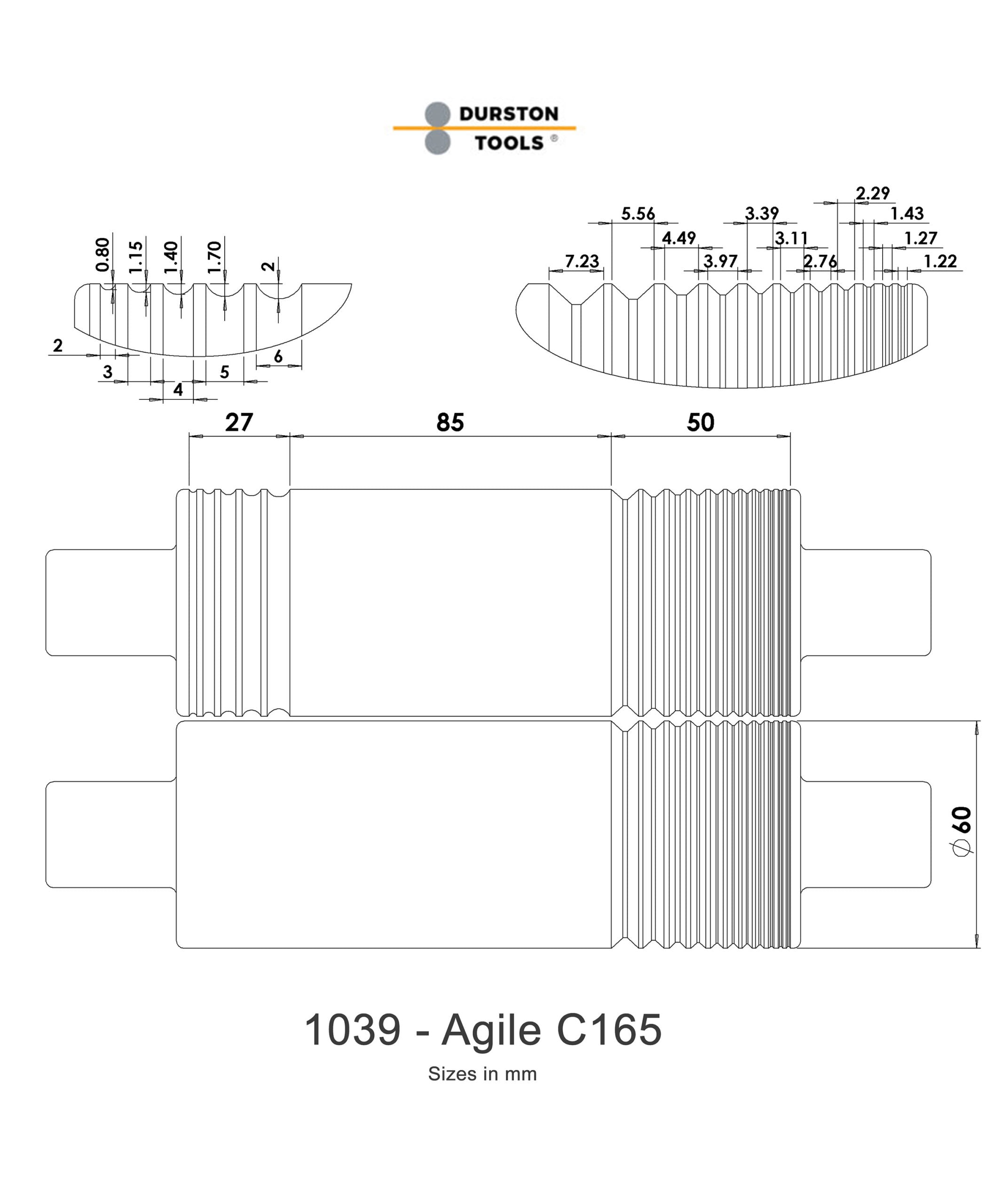

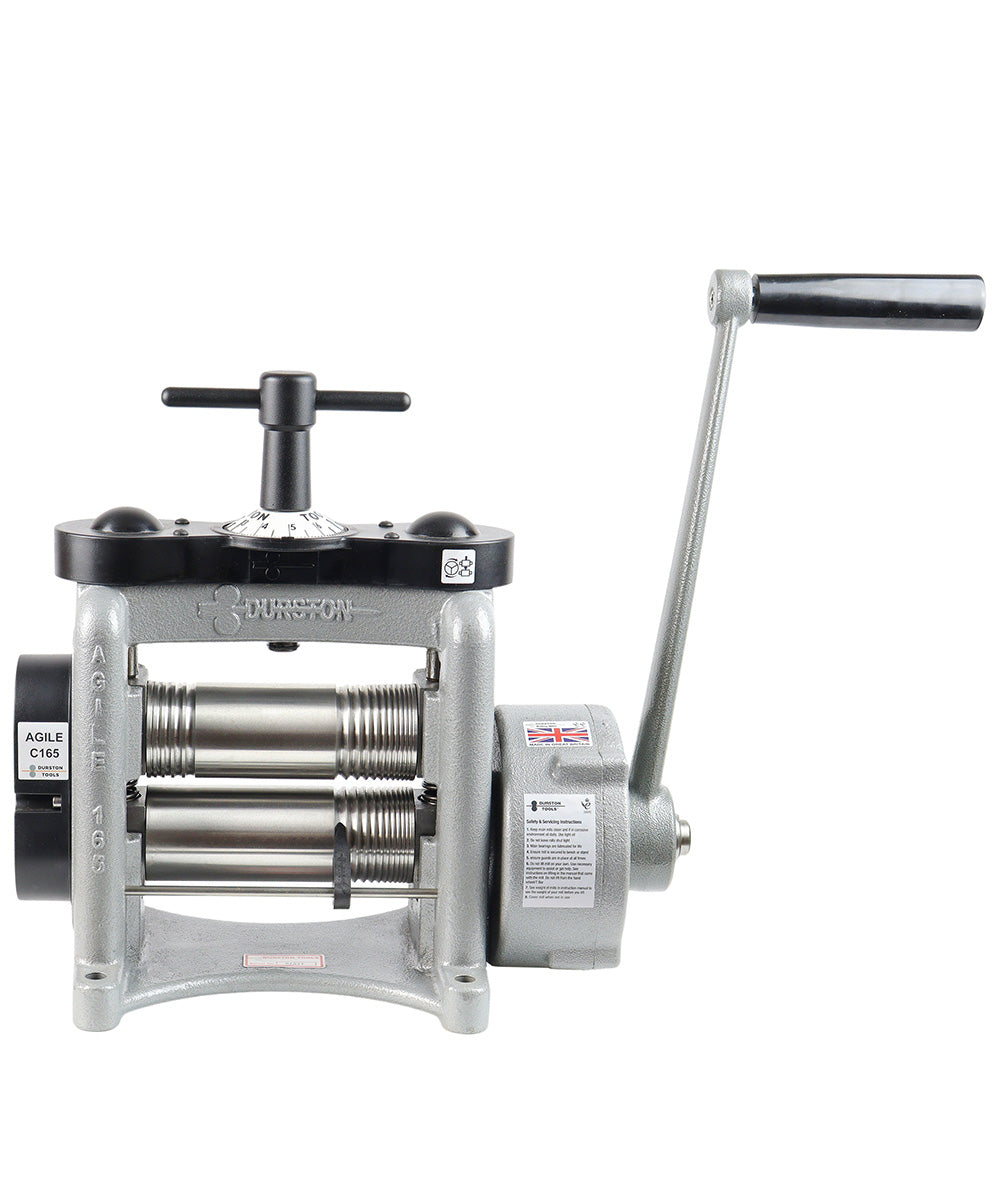

The Durston Agile C165 Rolling Mill continues the brand’s tradition of exceptional strength and durability, designed to support heavy loads effortlessly without sacrificing quality. The main roller features five half-round grooves, a generous 85mm flat rolling area, and eleven square wire grooves, making it ideal for a wide range of metalworking tasks.
Crafted with rolls specially induction hardened to 64 RC and a main barrel hardened to a depth of 6mm, this mill promises a lifetime of consistent performance. Proudly manufactured in-house at Durston’s High Wycombe facility, each component undergoes precise machining, hardening, and grinding to ensure the highest quality.
The fully supported bearing blocks use self-lubricating, maintenance-free bearings to provide the smoothest and best rolled finish possible. Durston’s industry-leading 5:1 reduction gearbox offers easy turning, supported by two internally formed gears to make rolling effortless and smooth. For added safety, a protective guard surrounds the top gears. The Agile C165 is part of Durston’s award-winning product lineup, trusted by metalworkers worldwide since 1961.
| PRODUCT LENGTH (MM) |
610 |
|---|---|
| PRODUCT WIDTH (MM) |
220 |
| PRODUCT HEIGHT (MM) |
440 |
| GEARBOX |
5 to 1 |
| NUMBER OF GROOVES |
11 |
| MAX. SHEET THICKNESS (MM) |
6 |
| ROLLER TYPE | |
| ROLLER DIAMETER (MM) |
60 |
| ROLLER LENGTH (MM) |
165 |
| SIDE EXTENSIONS |
4, 3, 2, 1.5mm |
| MAX. WIRE CAPACITY (MM) |
