Durston Mini C80E


Price:
Sale price$1,286.00

Description

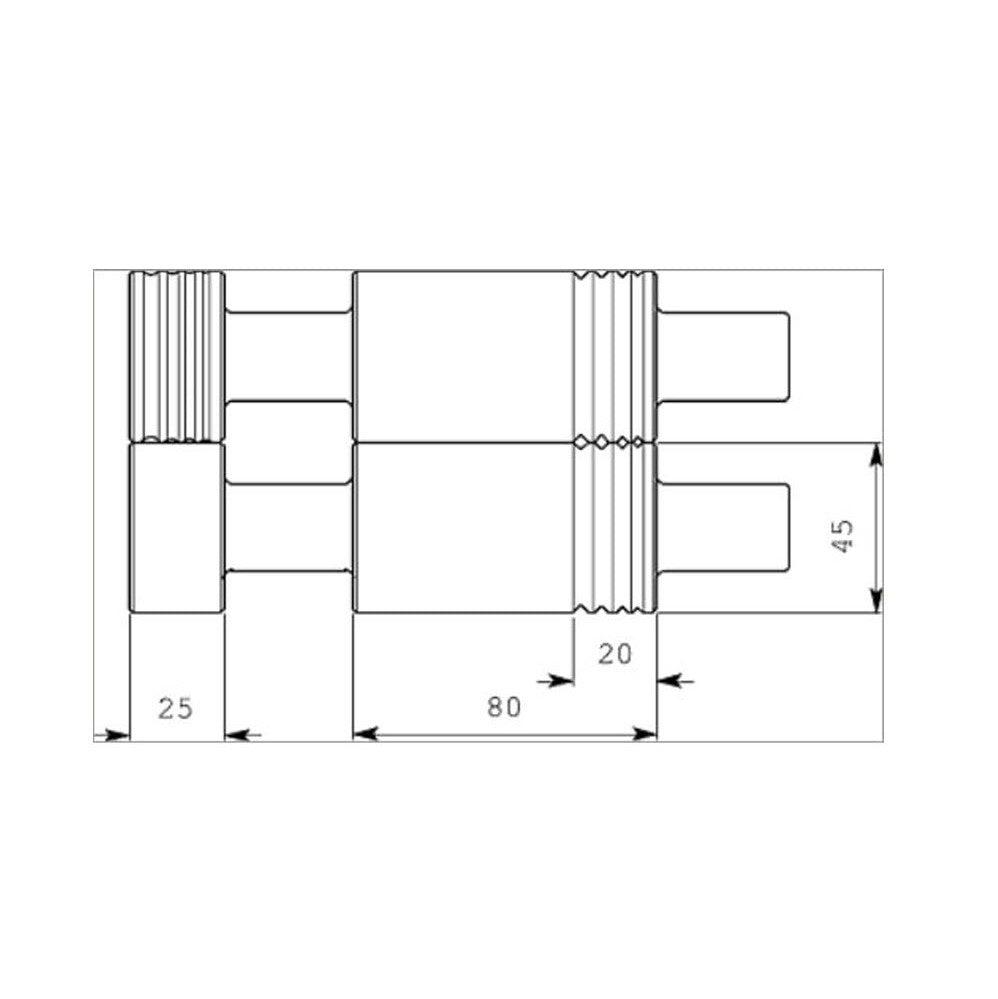

As the world’s foremost manufacturer of rolling mills, Durston’s mills are recognised globally for their reliability, incredibly robust construction and build quality. The Mini C80E rolling mill has side extensions and is no exception and has been manufactured in a one-piece cast iron construction for optimal strength and rigidity. It is compact but still with everything you need and has precision hardened and ground rolls to 64RC. It has maintenance-free bearings and has large, easy-to-read calibrated discs. The side extension rollers come with four half rounds. The C80E has four wire shaping rollers ranging from 6.5mm to 1mm. The width of the rollers is 80mm with a diameter of 45mm and can take metal sheets up to 5mm thick. The mill also benefits from four side extension half rounds of 4, 3, 2 & 1.5 mm. The entry-level C80E rolling mill from Durston: part of the award-winning Durston product range since 1961. We recommend that your Durston rolling mill be securely fastened down for safety, and we have a variety of stands which are ideally suited for this purpose.

(Can be backordered)

PRODUCT LENGTH (MM)

255

PRODUCT WIDTH (MM)

170

PRODUCT HEIGHT (MM)

265

GEARBOX

NUMBER OF GROOVES

4

MAX. SHEET THICKNESS (MM)

ROLLER TYPE

ROLLER DIAMETER (MM)

45

ROLLER LENGTH (MM)

SIDE EXTENSIONS

4, 3, 2, 1.5mm

MAX. WIRE CAPACITY (MM)
