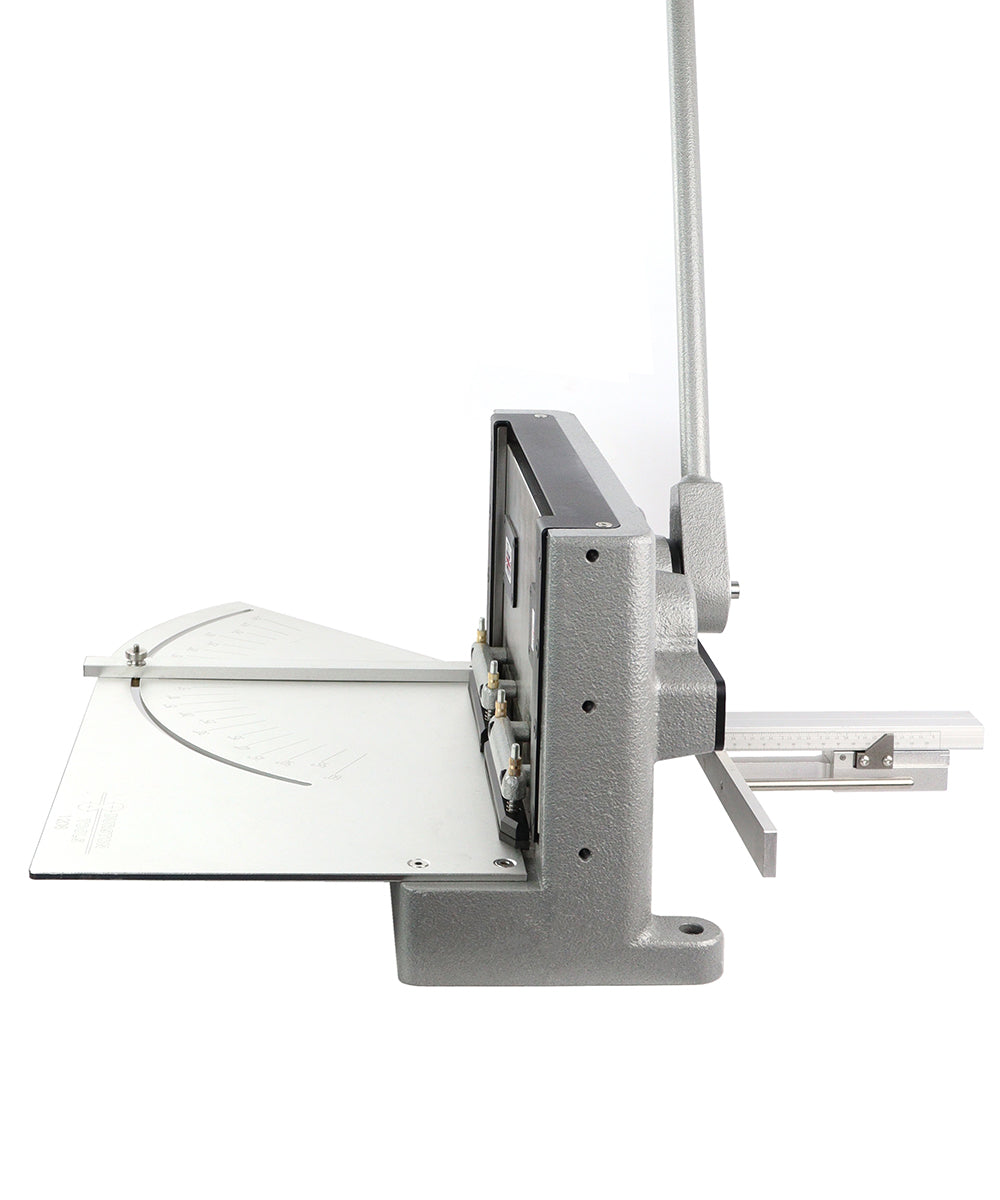

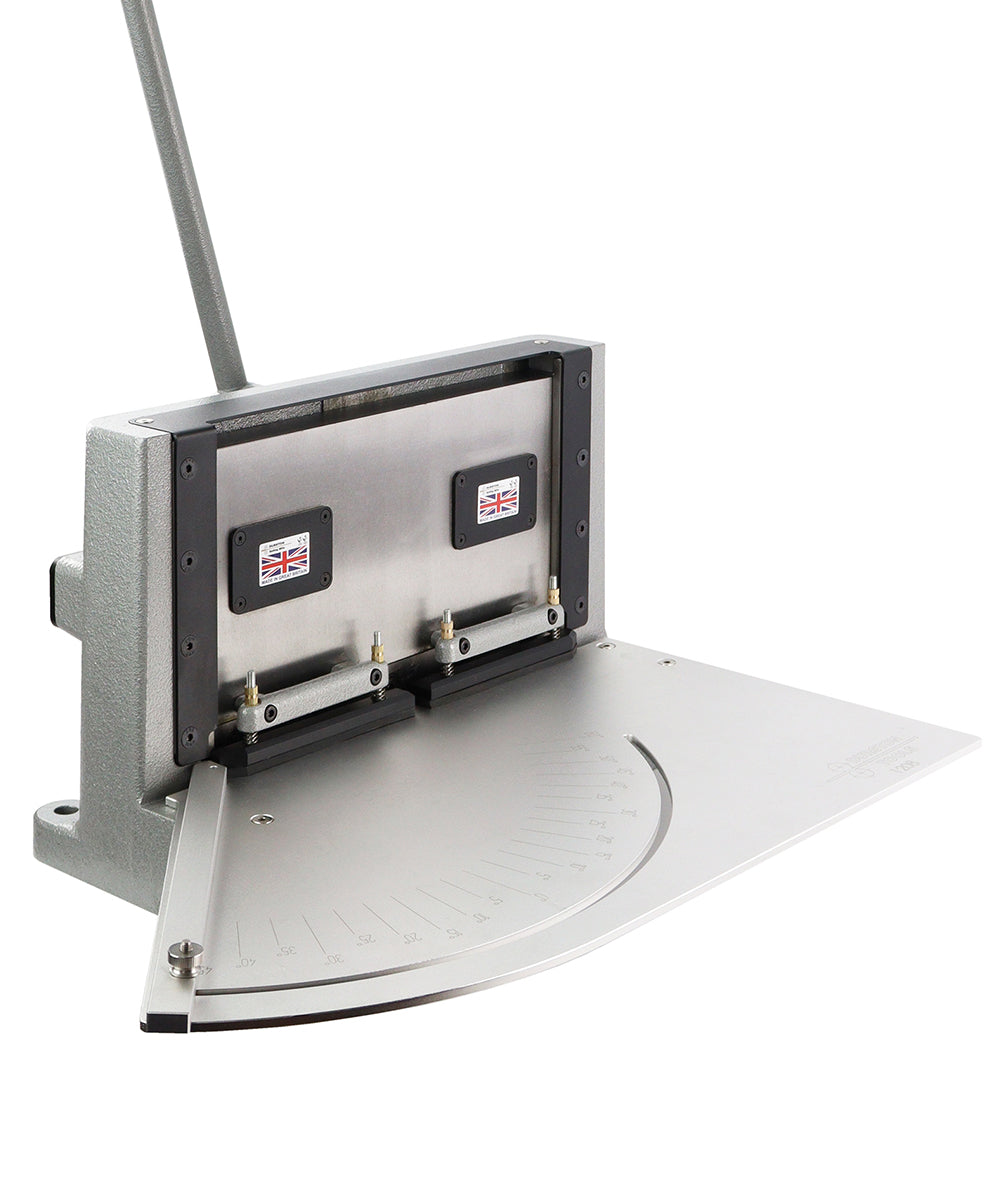

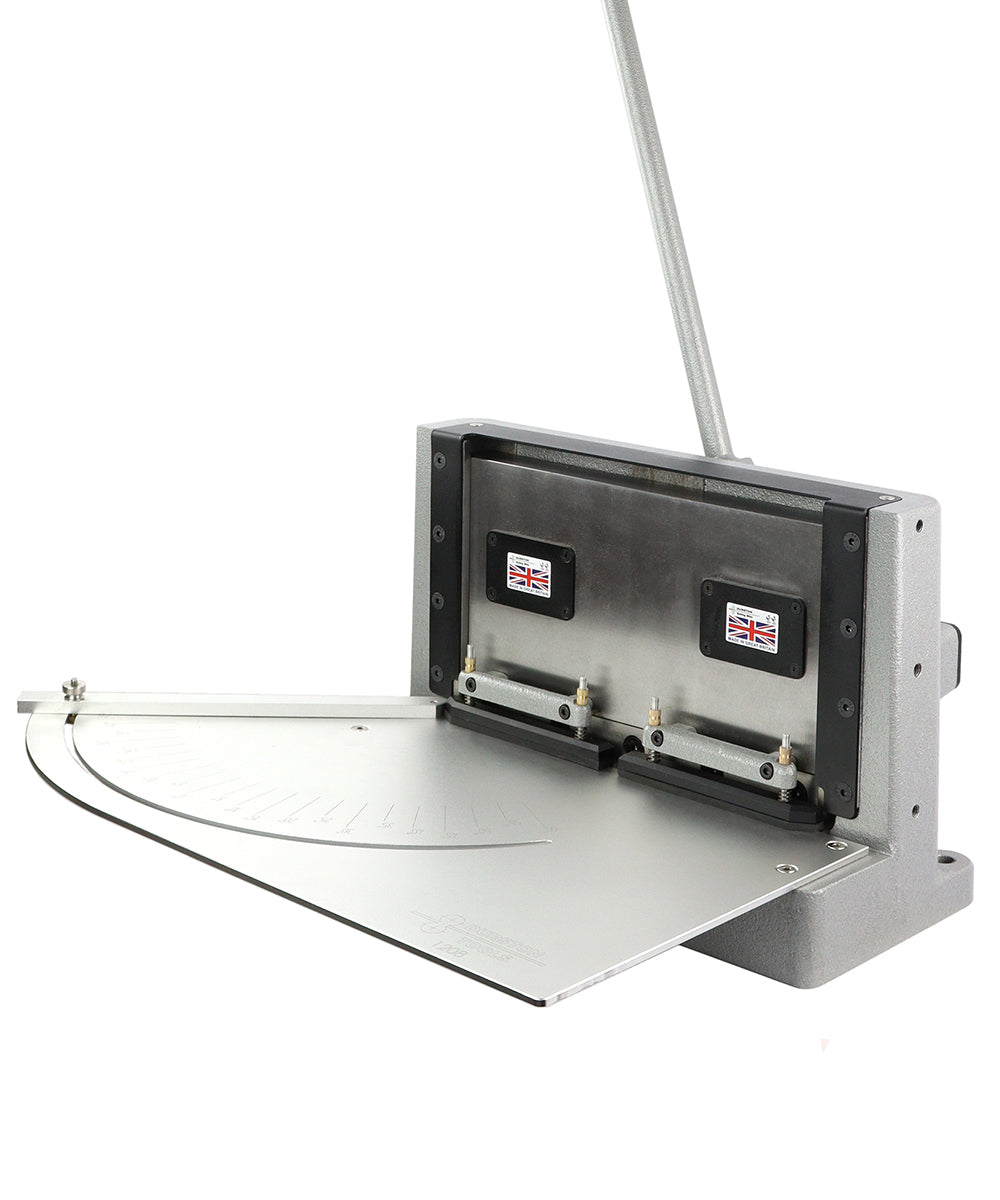

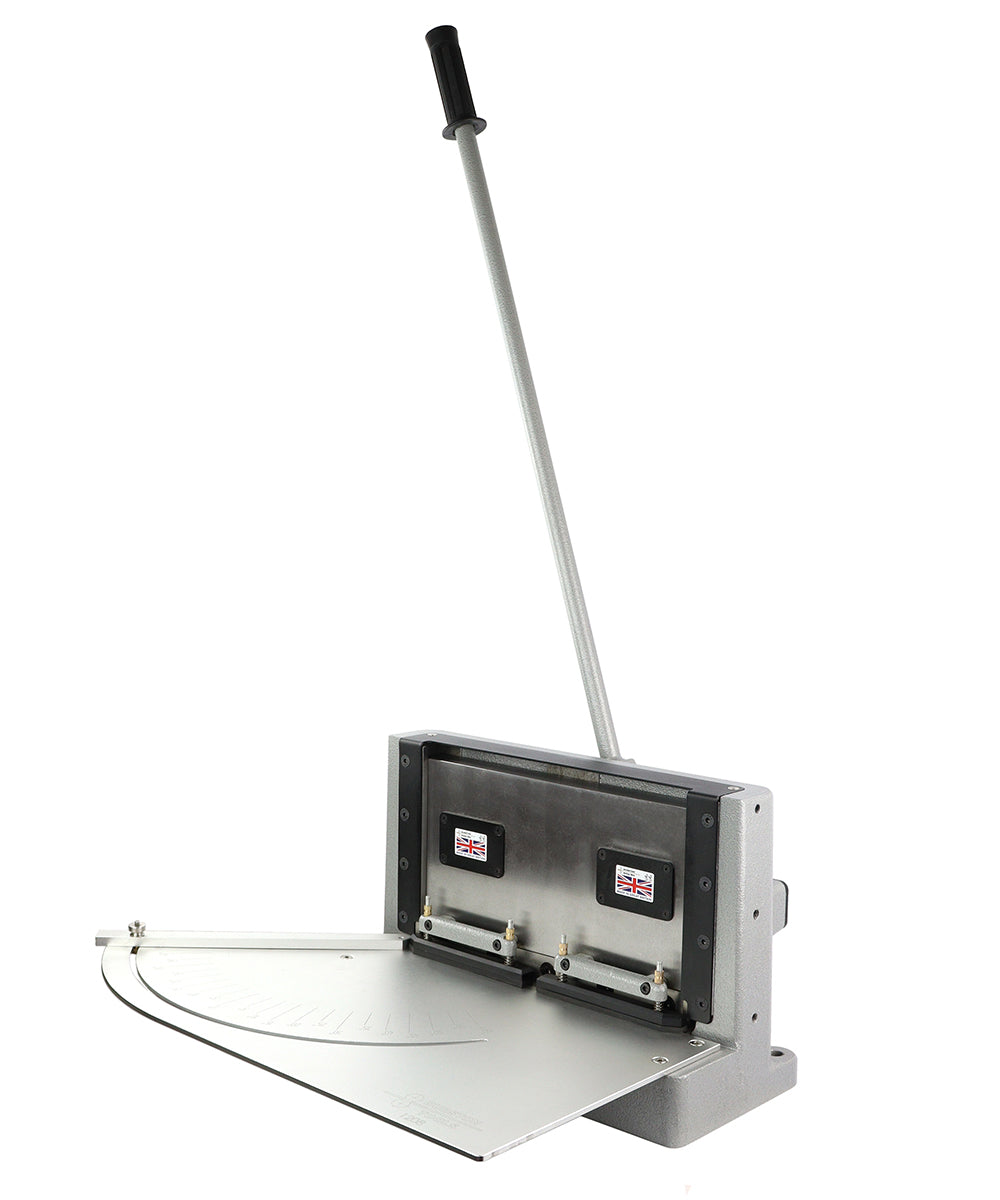

Durston 12″ Guillotine Shear

The Durston 12″ Guillotine Shear represents a significant upgrade from previous models, offering enhanced flexibility and accuracy for jewellery and sheet metal cutting. Retaining the traditional cutting method of Durston's well-known 12″ shear, the new design includes a unique stainless steel table and cutting guide that allows wider sheet metal to pass through easily, especially when cutting at 45°, solving a common obstruction issue found in other guillotines.

Additional features include an upgraded backstop with smooth bearing guides that can be hand-tightened for quick locking and release, ensuring zero movement during repeated cuts. The shear incorporates a patent-pending square drive system with a rack and pinion mechanism, delivering maximum torque directly from the pull-down bar to the cutting blade, resulting in smoother cuts with less force compared to older round shaft drive mechanisms.

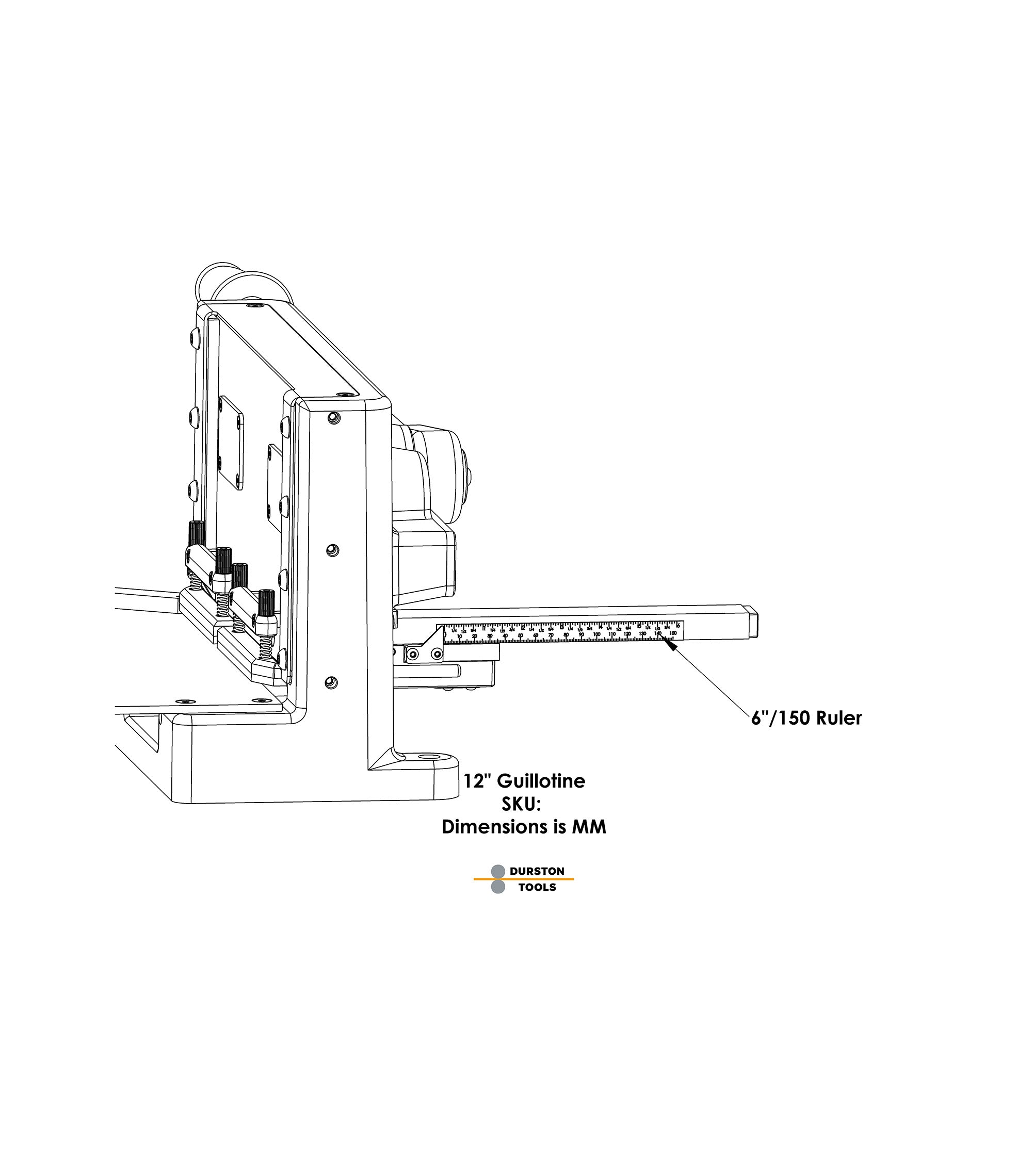

This guillotine shear can cut angles up to 55° in 5° increments and features an adjustable built-in mitre gauge and ruler. The hardened, tempered blade has four cutting edges, allowing for up to 20,000 cuts before needing to be turned or replaced. Its rigid, cast-iron body provides durability and stability, with mounting holes to secure it to any work surface. Tested on copper and other non-ferrous metals, it can cut full 12″ sheets up to 1mm thick and 6″ wide sheets up to 1.5mm thick. This tool is made in the UK and is ideal for professional users requiring precision and robust performance.
