Description

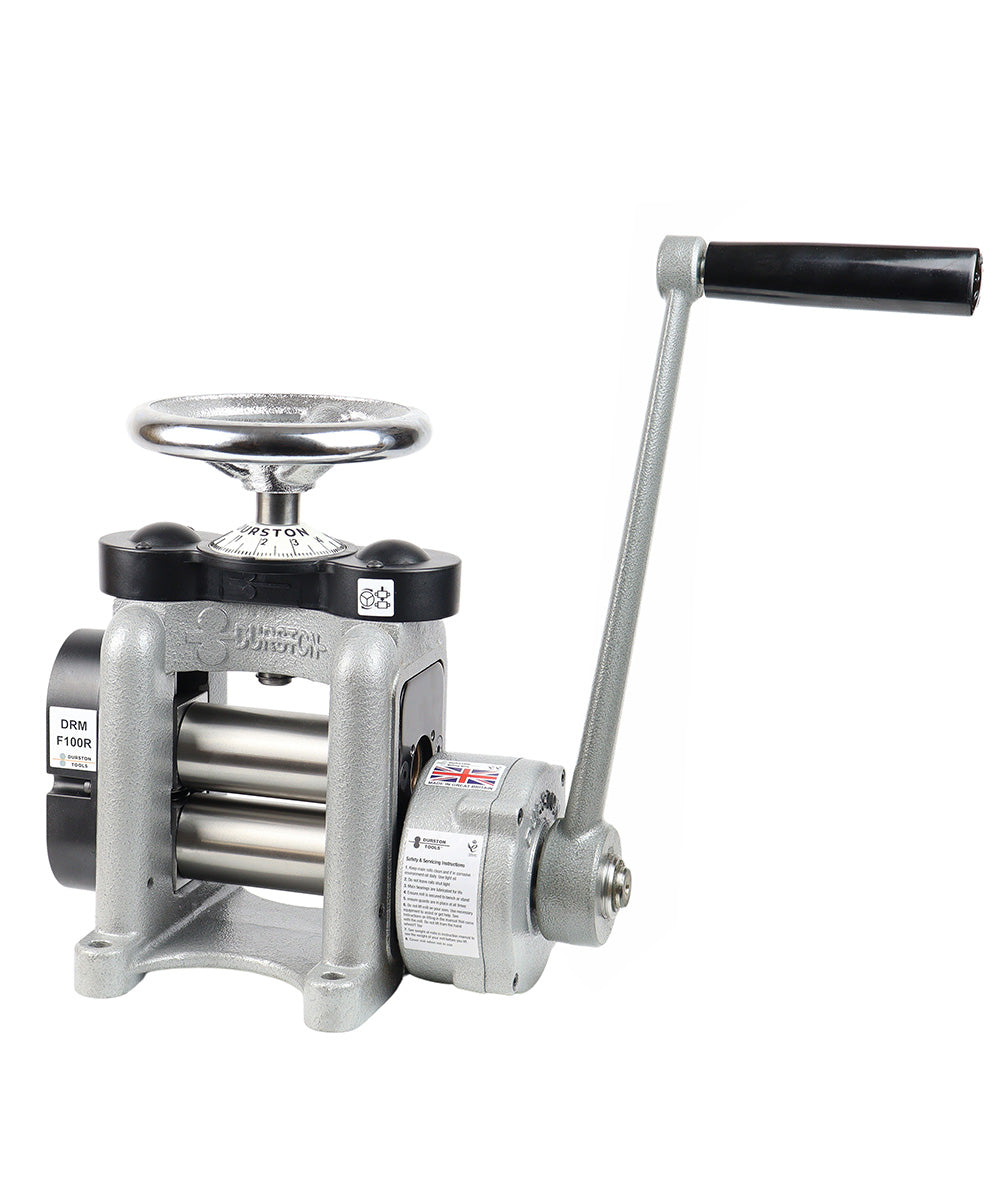

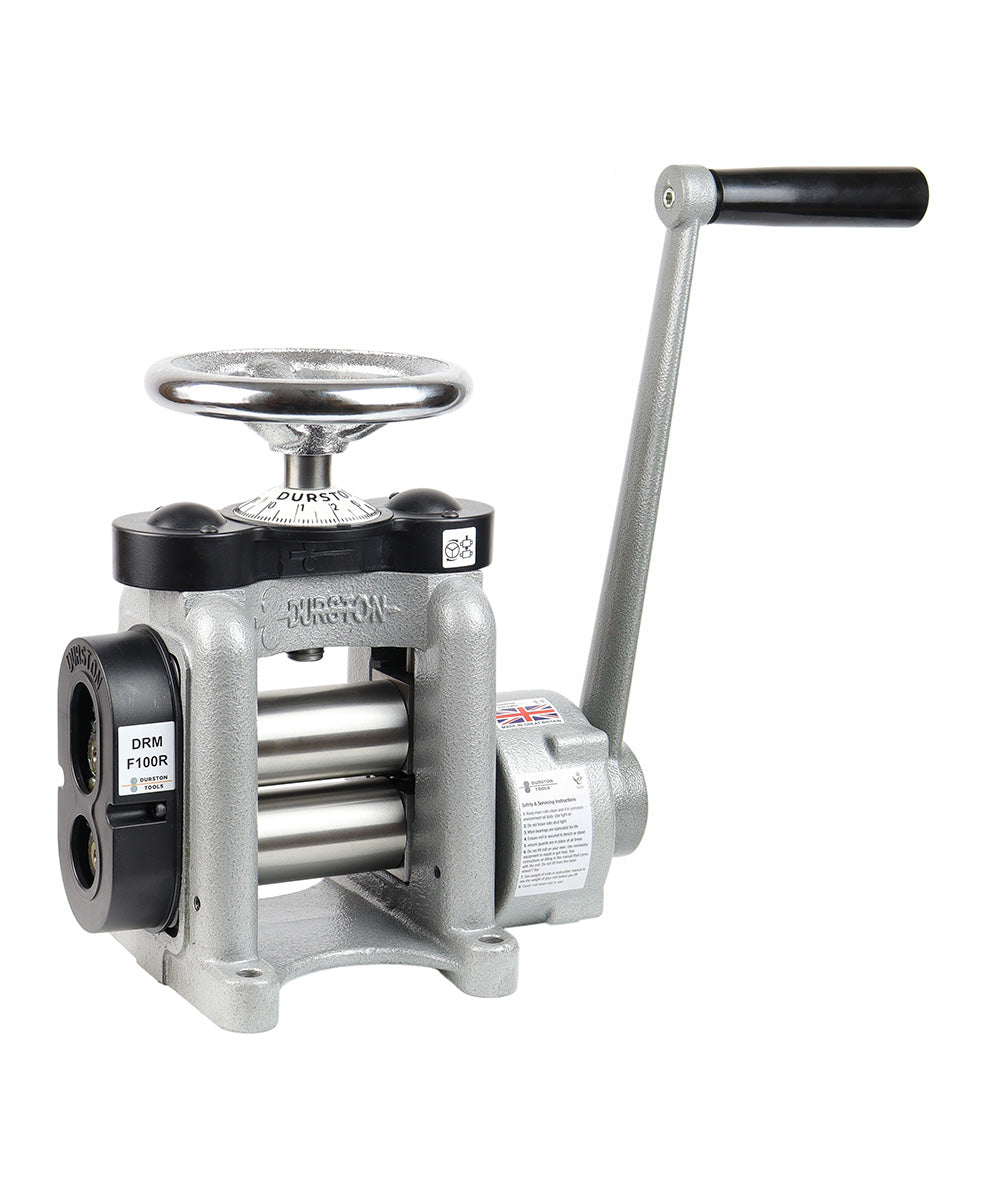

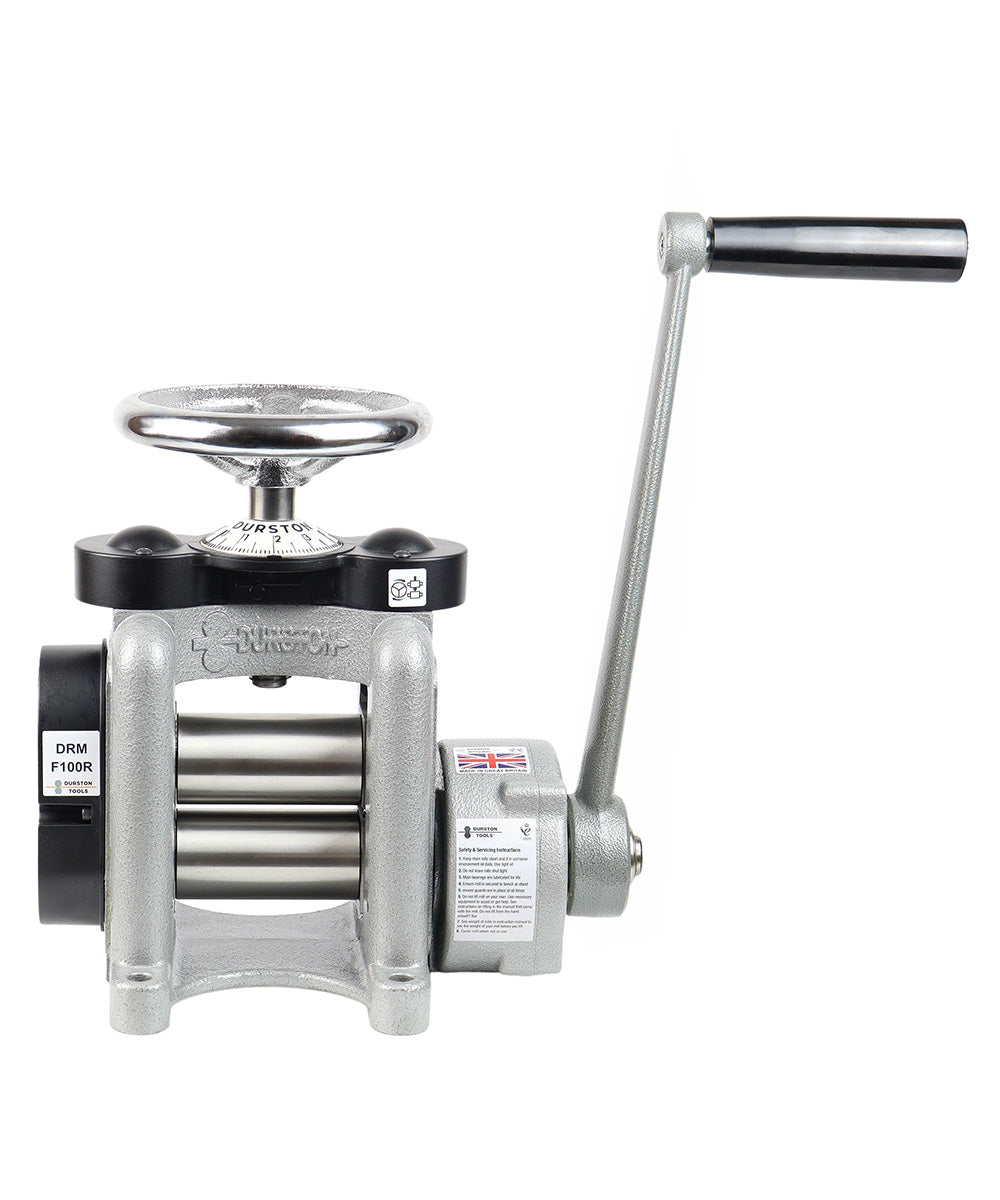

The Durston DRM F100R Rolling Mill is designed for precision flat sheet metal rolling, featuring a robust 4-to-1 reduction self-lubricating gearbox for maximum efficiency. It handles flat sheet metals up to 100mm wide and 5.5mm thick, making it ideal for a wide range of professional metalworking tasks.
Adjusting the roll gap is simple with the top-mounted calibrated wheel, providing precise control for accurate rolling thickness. The solid cast iron body ensures ultimate strength and durability. The rolls are induction hardened to RC64, guaranteeing professional-grade rolling results that stand the test of time.

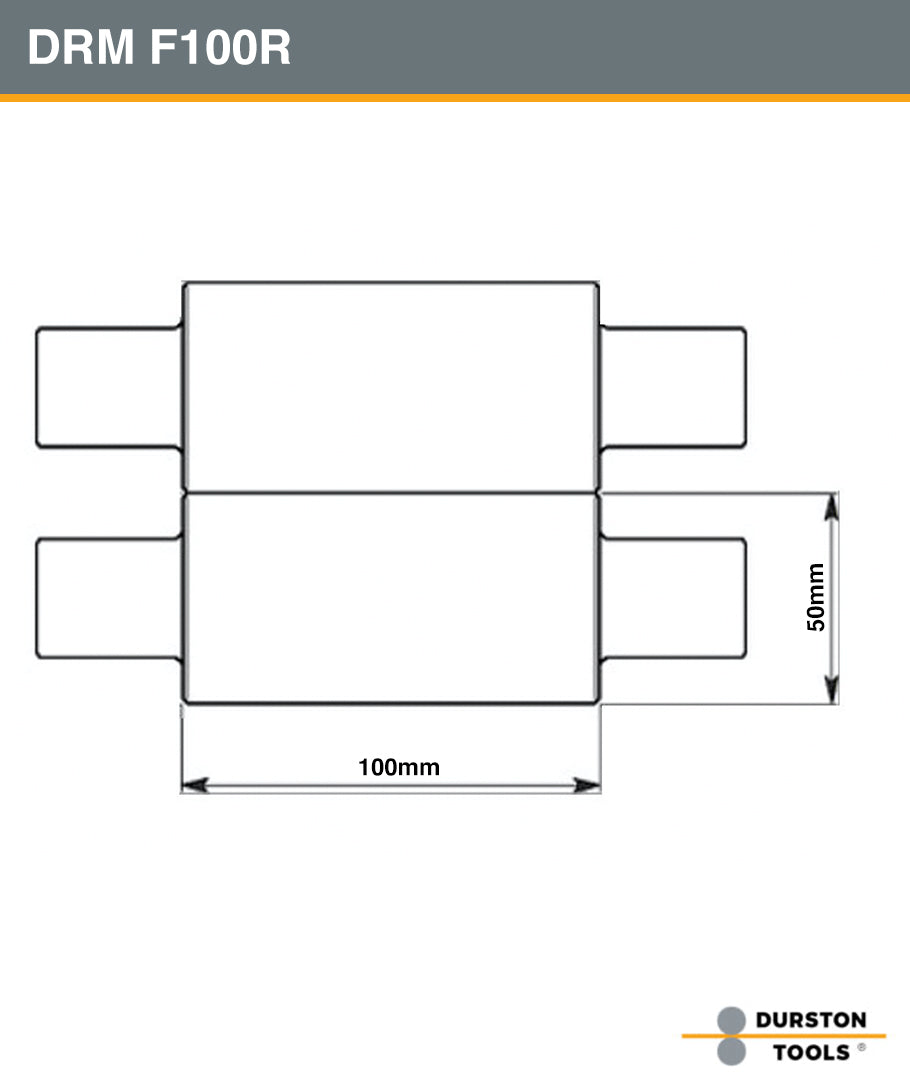

With a 50mm roll diameter and a 100mm roll width, this rolling mill is engineered to deliver consistent, smooth performance and long-lasting reliability for both hobbyists and professionals.
| PRODUCT WEIGHT (KG) |
29KG |
|---|---|
| PRODUCT LENGTH (MM) |
480 |
| PRODUCT WIDTH (MM) |
210 |
| PRODUCT HEIGHT (MM) |
400 |
| GEARBOX | |
| NUMBER OF GROOVES |
N/A |
| MAX. SHEET THICKNESS (MM) | |
| ROLLER TYPE | |
| ROLLER DIAMETER (MM) |
50 |
| ROLLER LENGTH (MM) | |
| SIDE EXTENSIONS |
4, 3, 2, 1.5mm |
| MAX. WIRE CAPACITY (MM) |
