Description

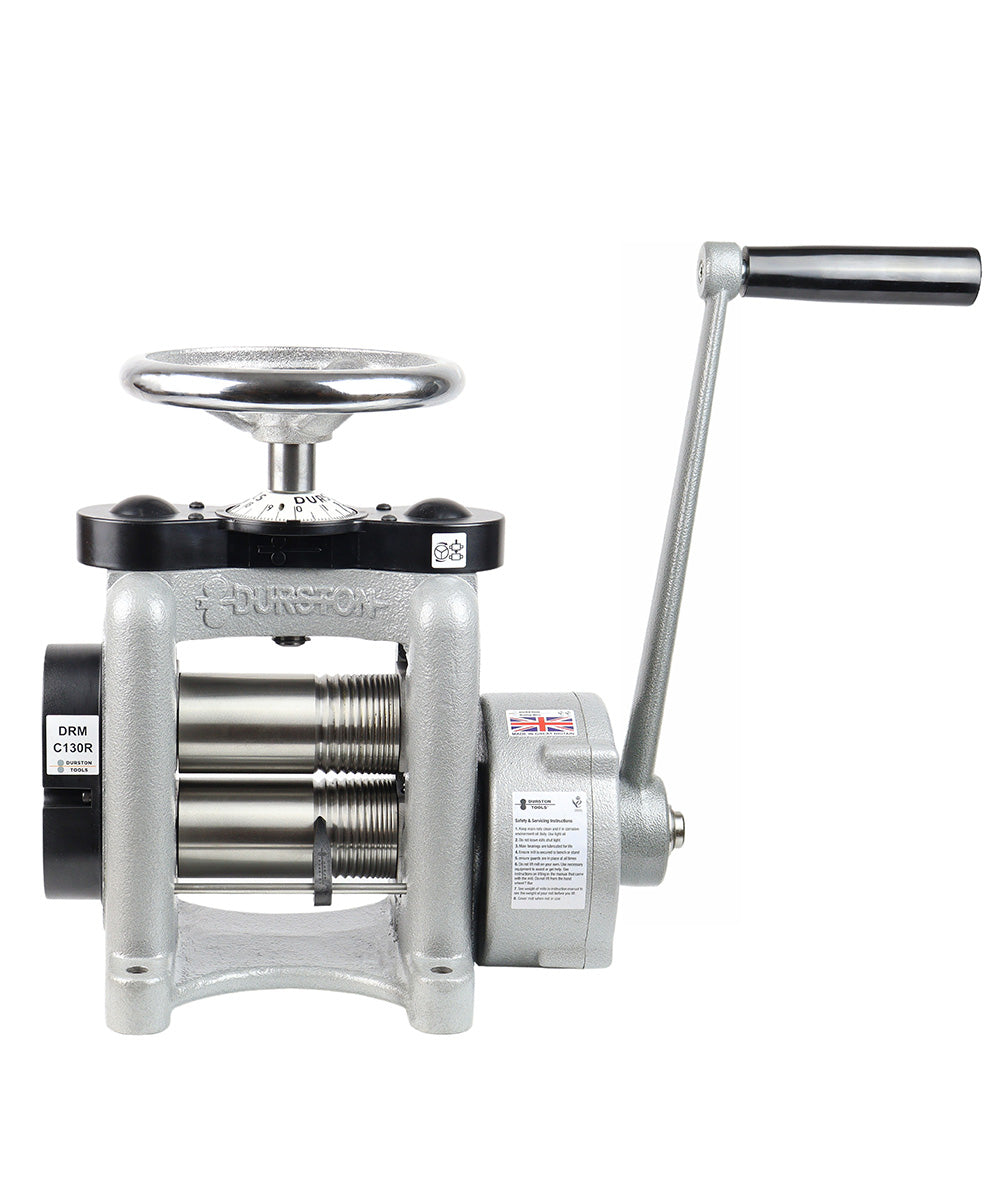

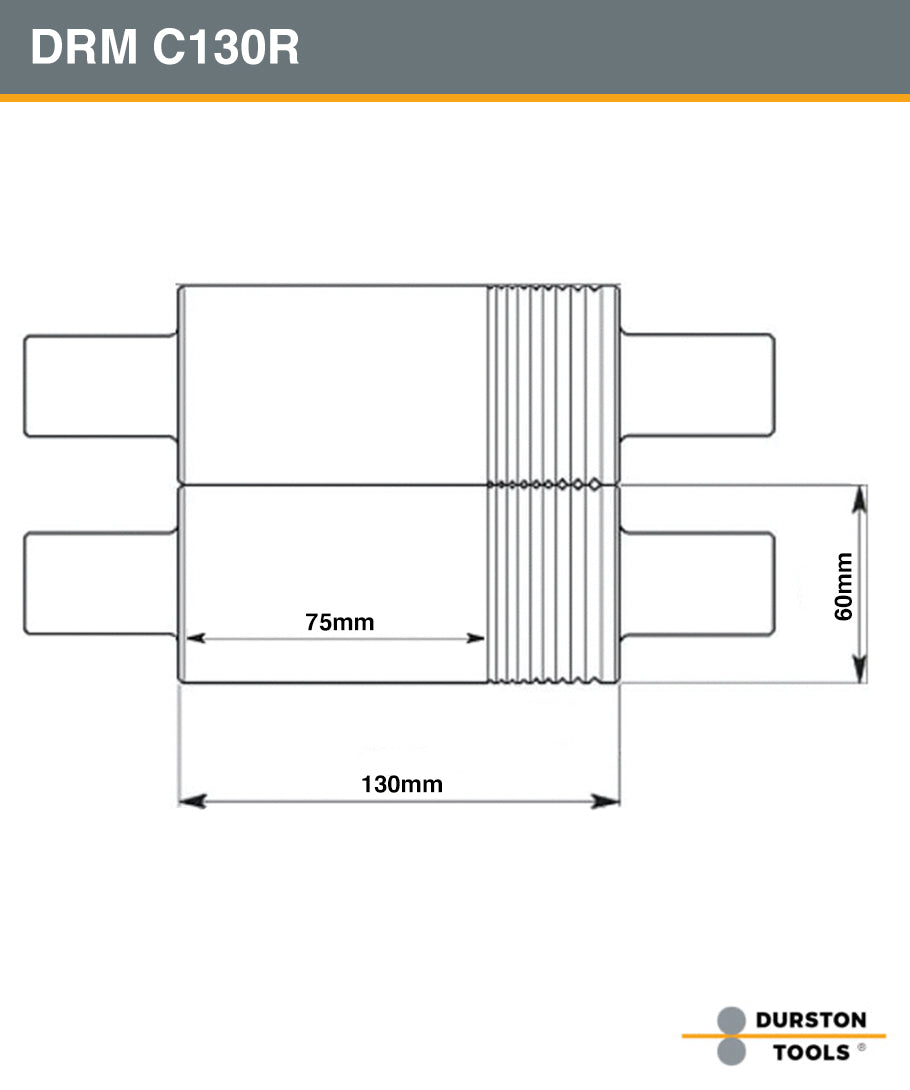

The Durston DRM C130R Rolling Mill features a powerful 5-to-1 self-lubricating gearbox designed for efficient rolling of materials up to 6mm thick and wires up to 8mm in diameter. Its precision-hardened rolls are 130mm wide, including 11 square wire rolling grooves ranging from 8mm to 1mm and a 75mm flat rolling area, delivering exceptional versatility for professional metalworking and jewelry tasks.
Adjustments are effortless with the top-mounted calibrated wheel, providing precise control over the roll gap. The solid cast iron body ensures ultimate strength and rigidity, while the rolls, induction hardened to RC64, promise a lifetime of consistent, professional-grade rolling performance.
This combination rolling mill is engineered for durability and smooth operation, making it ideal for serious hobbyists and professionals seeking reliability and accuracy in their metal shaping processes.
| PRODUCT WEIGHT (KG) |
46KG |
|---|---|
| PRODUCT LENGTH (MM) |
540 |
| PRODUCT WIDTH (MM) |
230 |
| PRODUCT HEIGHT (MM) |
440 |
| GEARBOX | |
| NUMBER OF GROOVES |
11 |
| MAX. SHEET THICKNESS (MM) |
6 |
| ROLLER TYPE | |
| ROLLER DIAMETER (MM) |
60 |
| ROLLER LENGTH (MM) | |
| SIDE EXTENSIONS |
4, 3, 2, 1.5mm |
| MAX. WIRE CAPACITY (MM) |
