Description

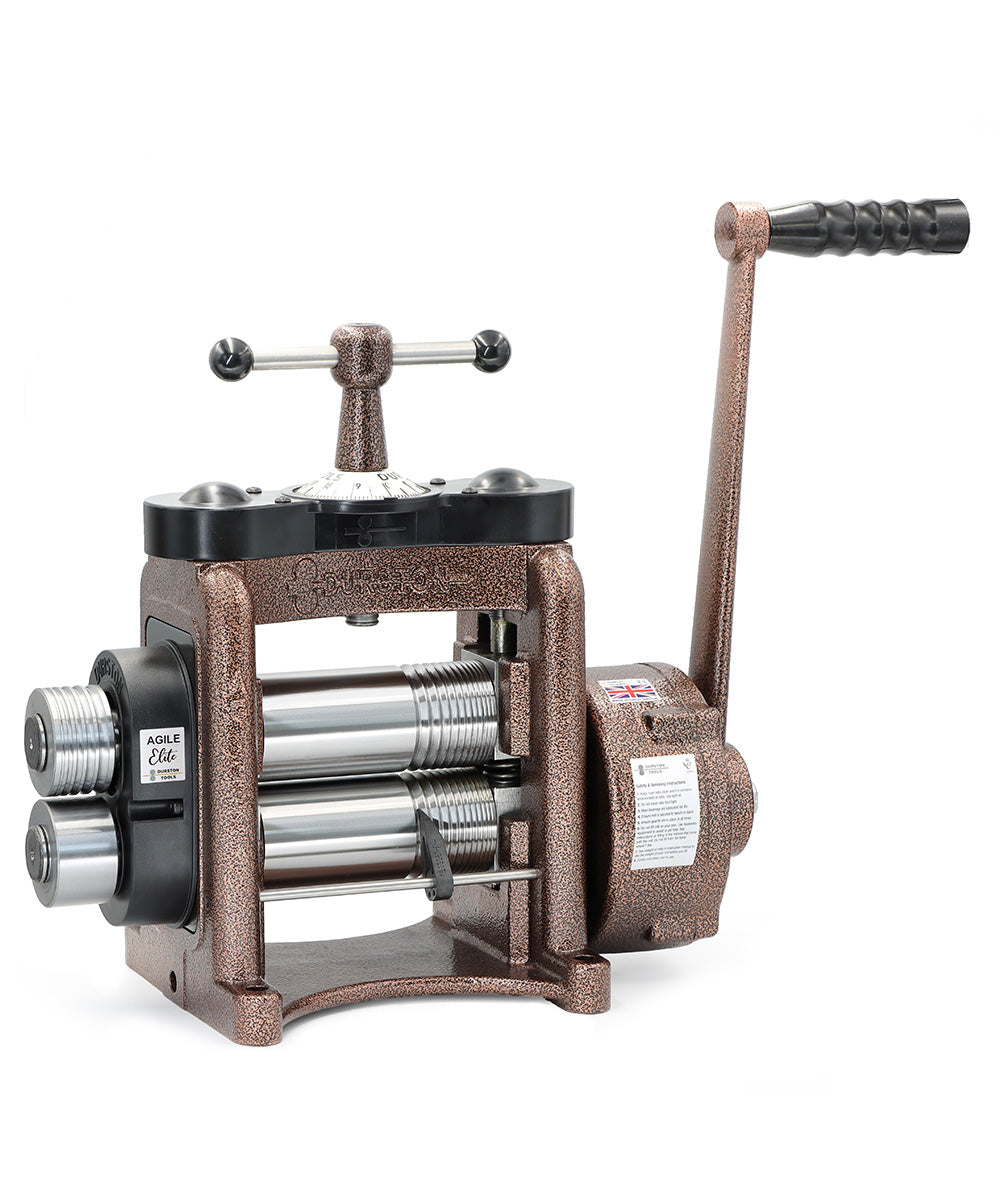

Introducing the Durston Agile Elite C140 Rolling Mill, the latest premium addition to the renowned Agile series and part of the King’s Celebration Edition. This special edition features a robust and smooth powder-coated copper finish that enhances durability and visual appeal while delivering advanced features to simplify your metalworking projects.

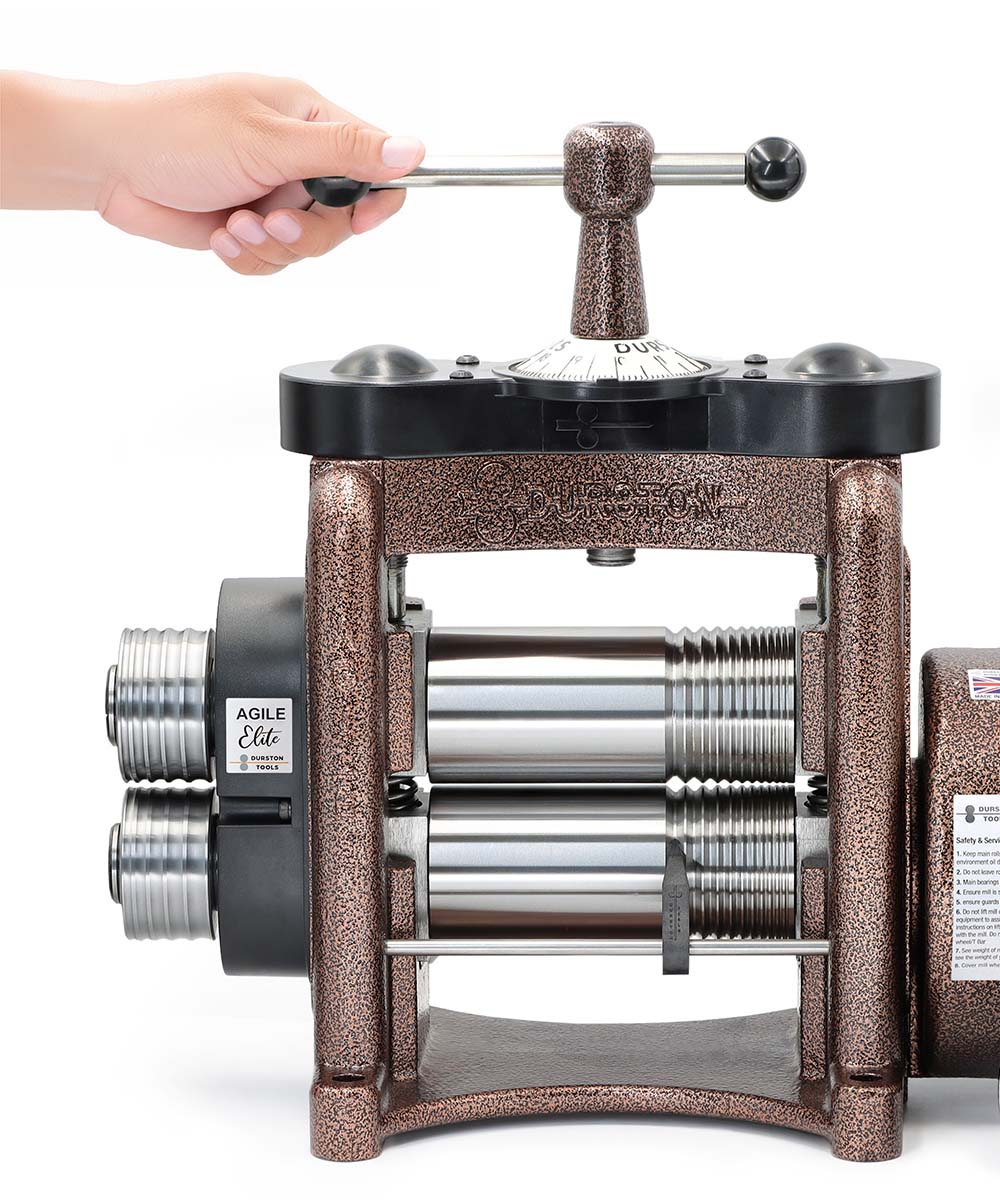

The Agile Elite C140 offers an expanded 90mm flat rolling area, providing more space for pattern plates and sheet metal, ideal for larger projects. Standard wire rolling grooves on the main roll make it a versatile combination mill. The adjustable T-bar enables quick, precise adjustments for smooth operation, complemented by an ergonomic revolving handle to reduce user fatigue during extended work sessions.

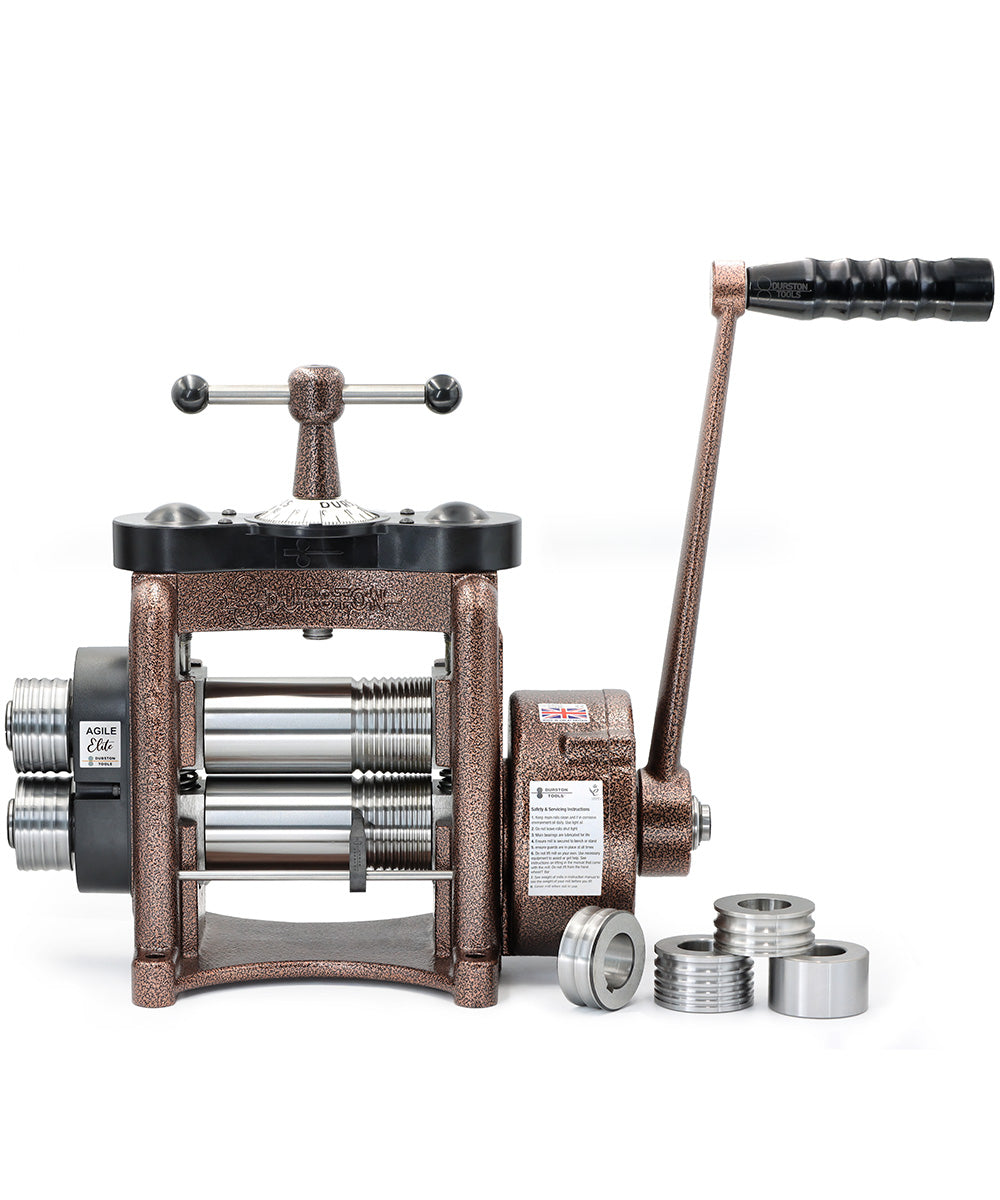

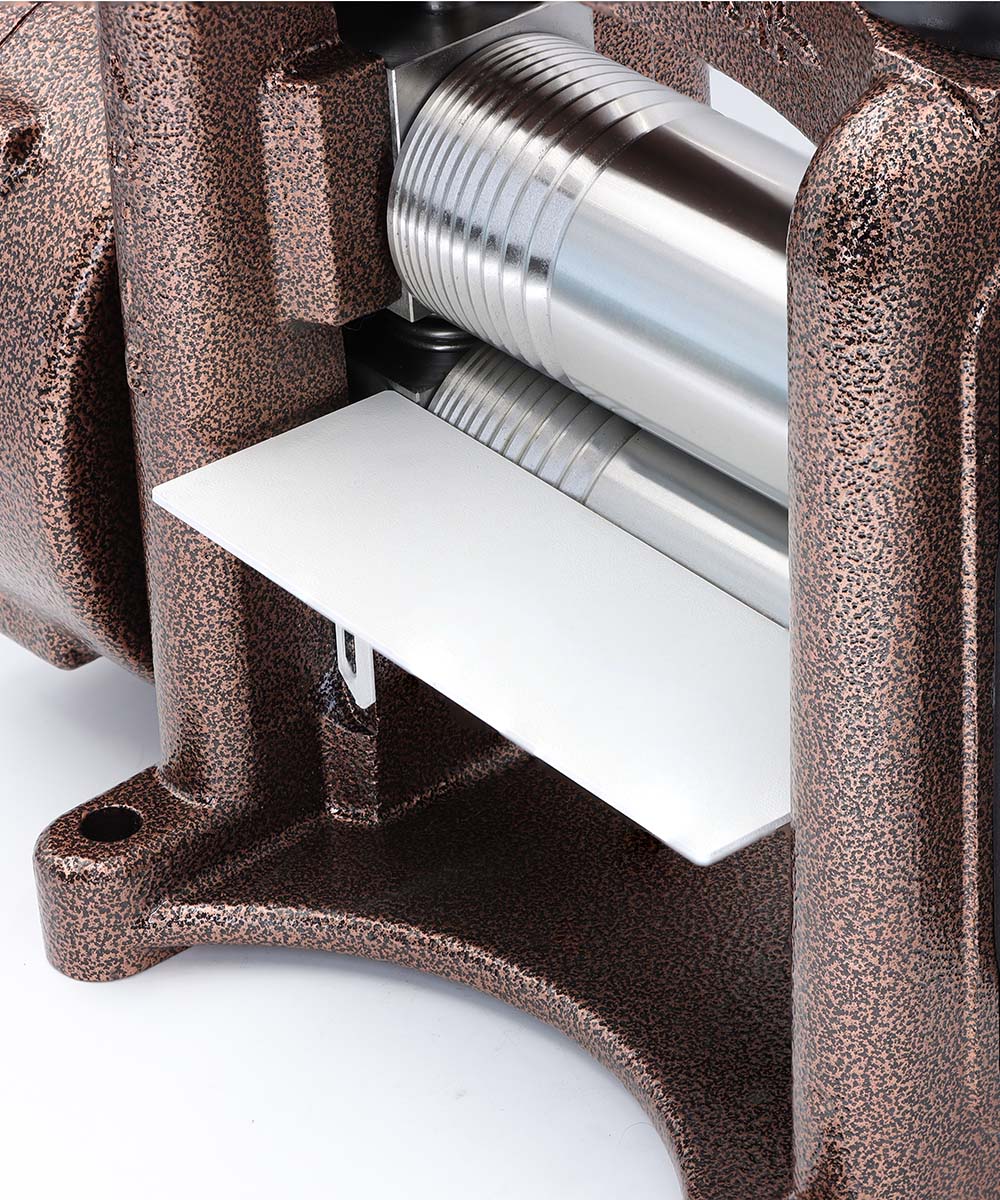

A white powder-coated rear catch tray improves visibility and ease of retrieving your pieces. The groove pointer bar ensures precision, and the hallmark 5:1 reduction gearbox delivers effortless rolling performance. The mill includes a comprehensive set of extension rollers, featuring multiple D-shaped and comfort fit rolls ranging from 3mm to 6mm, catering to diverse metalworking needs.
Additional perks include a pattern plate to create intricate designs and a protective rolling mill cover to keep your equipment dust-free and extend its longevity. Each Agile Elite C140 unit is uniquely numbered, with the first 1000 offering an exclusive ownership experience. This rolling mill is not just a tool but a lifelong partner in your creative endeavors.

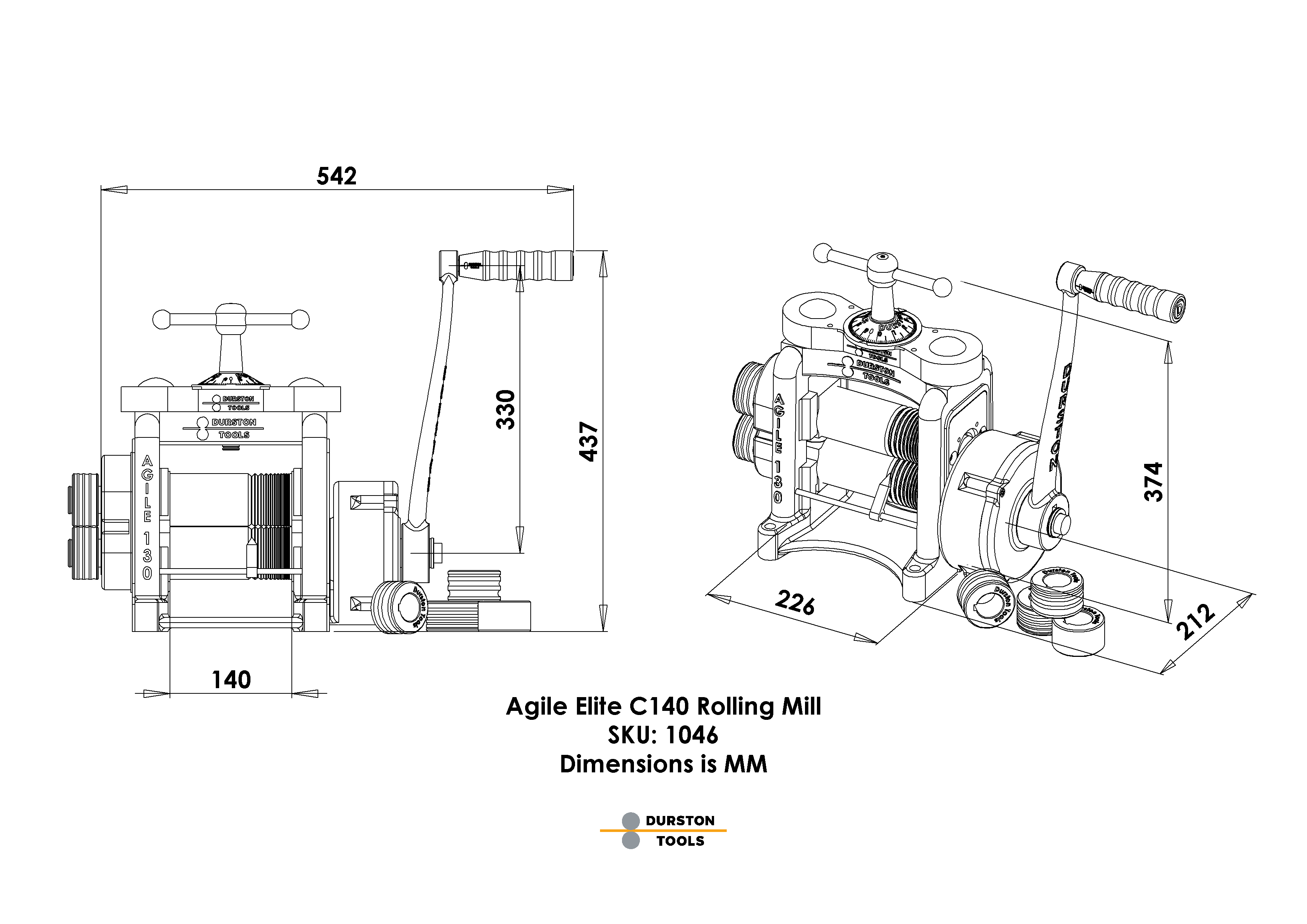

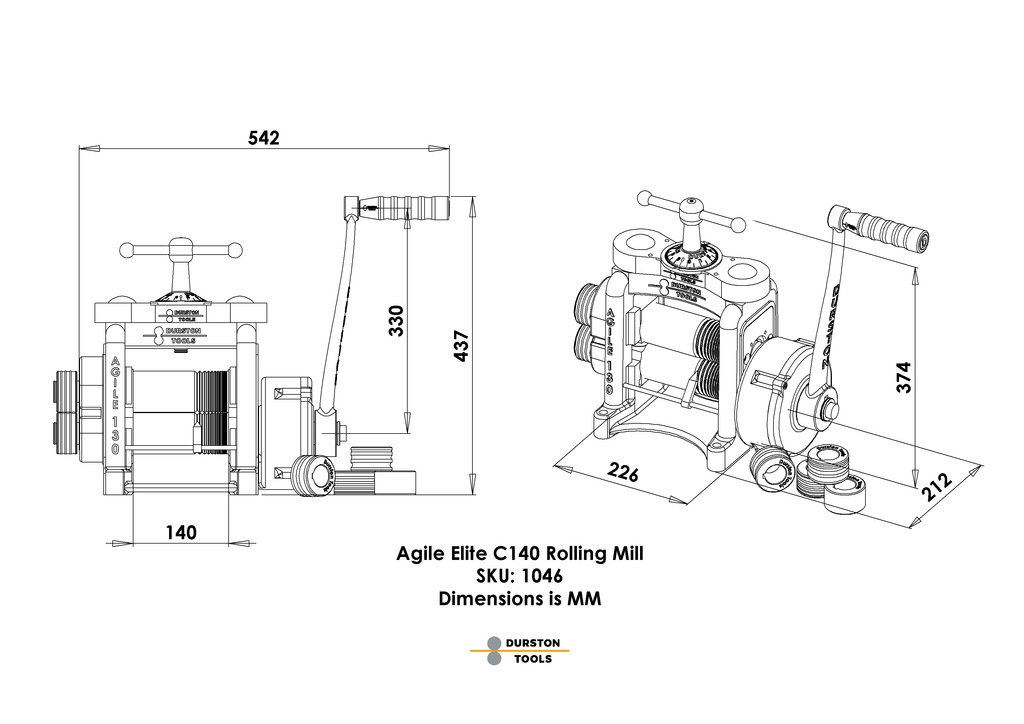

| PRODUCT LENGTH (MM) |
580 |
|---|---|
| PRODUCT WIDTH (MM) |
220 |
| PRODUCT HEIGHT (MM) |
440 |
| GEARBOX |
5 to 1 |
| NUMBER OF GROOVES |
11 |
| MAX. SHEET THICKNESS (MM) |
6 |
| ROLLER TYPE | |
| ROLLER DIAMETER (MM) |
60 |
| ROLLER LENGTH (MM) |
140 |
| SIDE EXTENSIONS |
4, 3, 2, 1.5mm |
| MAX. WIRE CAPACITY (MM) |
